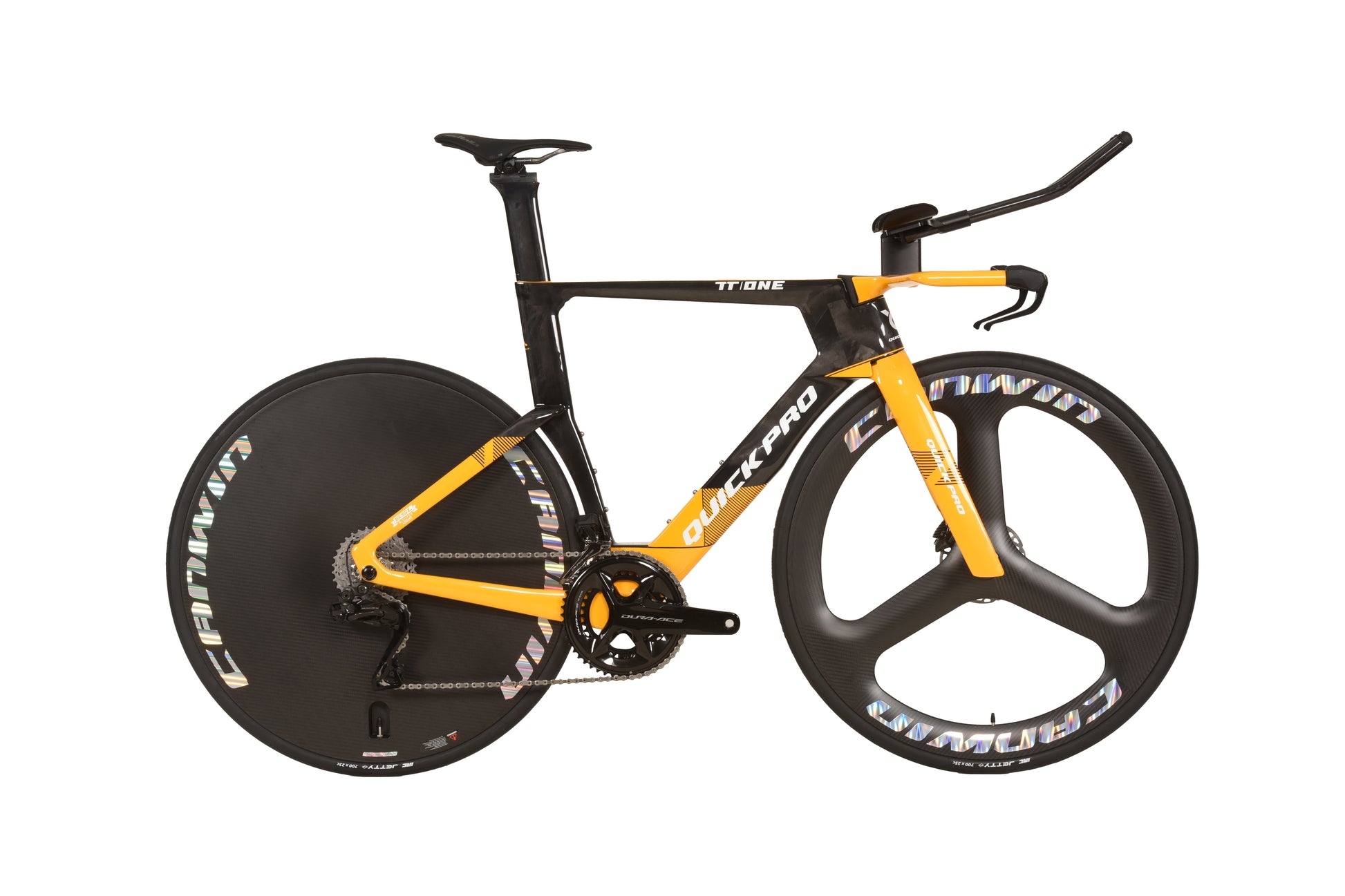

TT:ONE

Precision. Speed. Perfection.

The Quick Pro Time Trial bike is built for one purpose — pure aerodynamic efficiency. Every tube, junction, and contour is optimized through extensive wind tunnel testing to minimize drag and maximize straight-line speed. Featuring an aggressive geometry that positions the rider for peak power transfer and reduced frontal area, it delivers unmatched stability even at high velocity. Crafted from high-modulus carbon fiber, the frame balances stiffness with lightweight performance, ensuring every watt goes directly into forward motion. With fully integrated cabling, aero cockpit, and race-proven design, this machine is engineered to slice through the air and dominate the clock.

Key Features

Key Specifications

Model
  • TT:ONE Red
Material
  • High-strength high-modulus carbon fiber
Headset
  • 52mmx52mm
BB
  • T47-68
Thru-axle
  • F/100x12m R/142x12mm
Tire (Max.)
  • 700x32c
Brakes
  • Flat Mount
Weight
  • Frame/1089±5% Fork/399±5%
Wheels
  • CANWIN F:Three-Spoke Wheel R:Disc Wheel
Outer Tire
  • IRC JELLY 700x28c
Inner Tube
  • 700x27c
Handlebar
  • TT:ONE

Size & Fit

Parameter XXS / 455 XS / 498 S / 555 M / 560 L / 565
A. Size / ST Length (mm) 455 498 555 560 565
B. Virtual TT (mm) 504 508 522 538 555
C. ST Angle (°) 75° 75° 75° 75° 75°
D. HT Angle (°) 71° 71° 72° 72° 72°
E. HT Length (mm) 80 85 90 95 100
F. RC Length (mm) 410 410 410 410 410
G. Wheel Base (mm) 968 973 980 996 1013
H. Fork Rake (mm) 45 45 45 45 45
I. BB Drop (mm) 75 75 75 75 75
J. Fork Length (mm) 365 365 365 365 365
K. Standover (mm) 717 722 731 733 739
Reach (mm) 375 378 390 405 420
Stack (mm) 481 486 495 497 503
