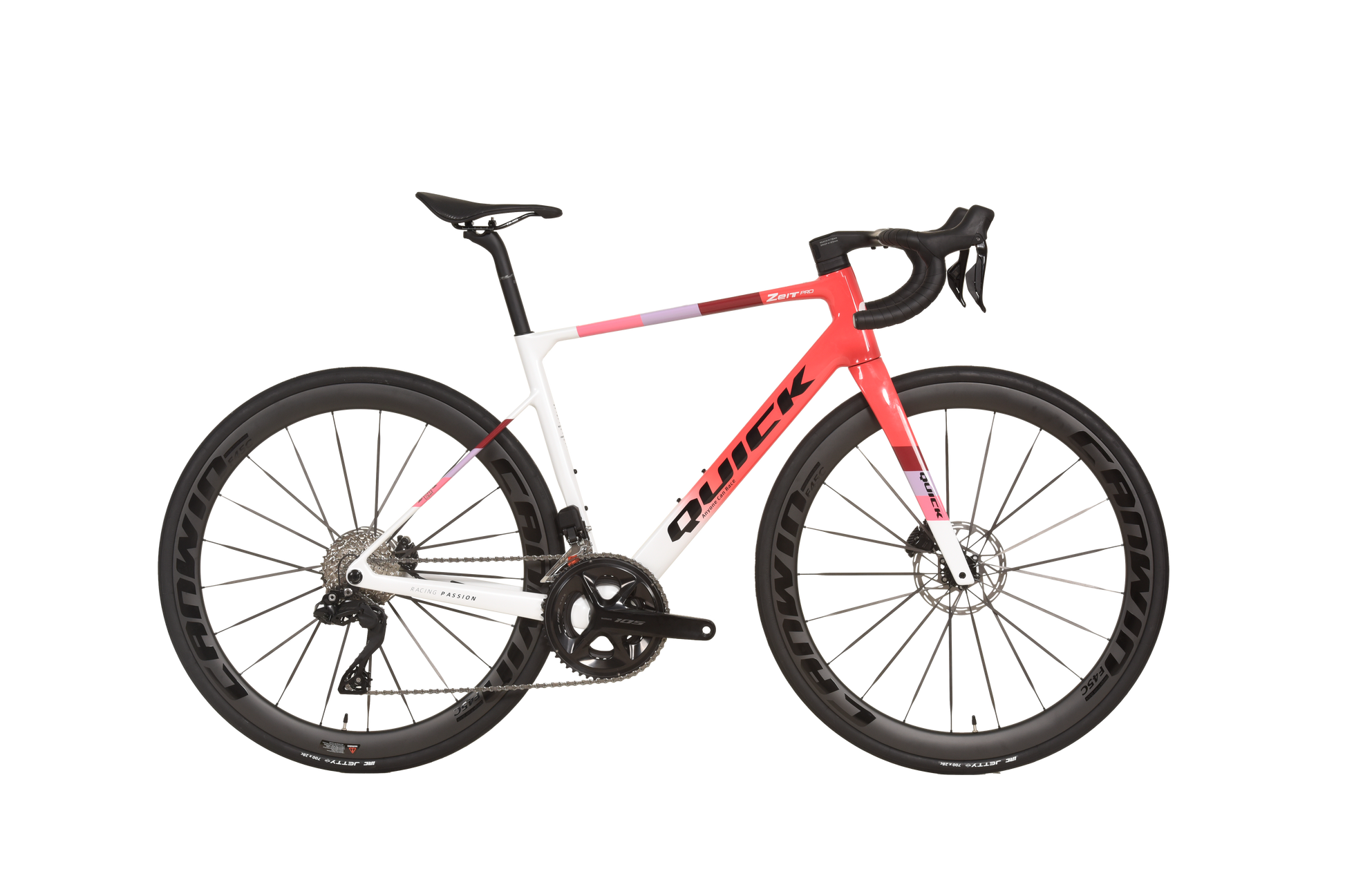

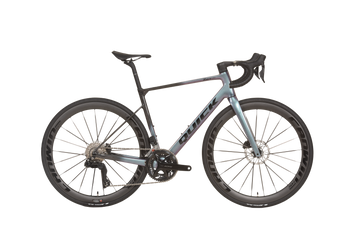

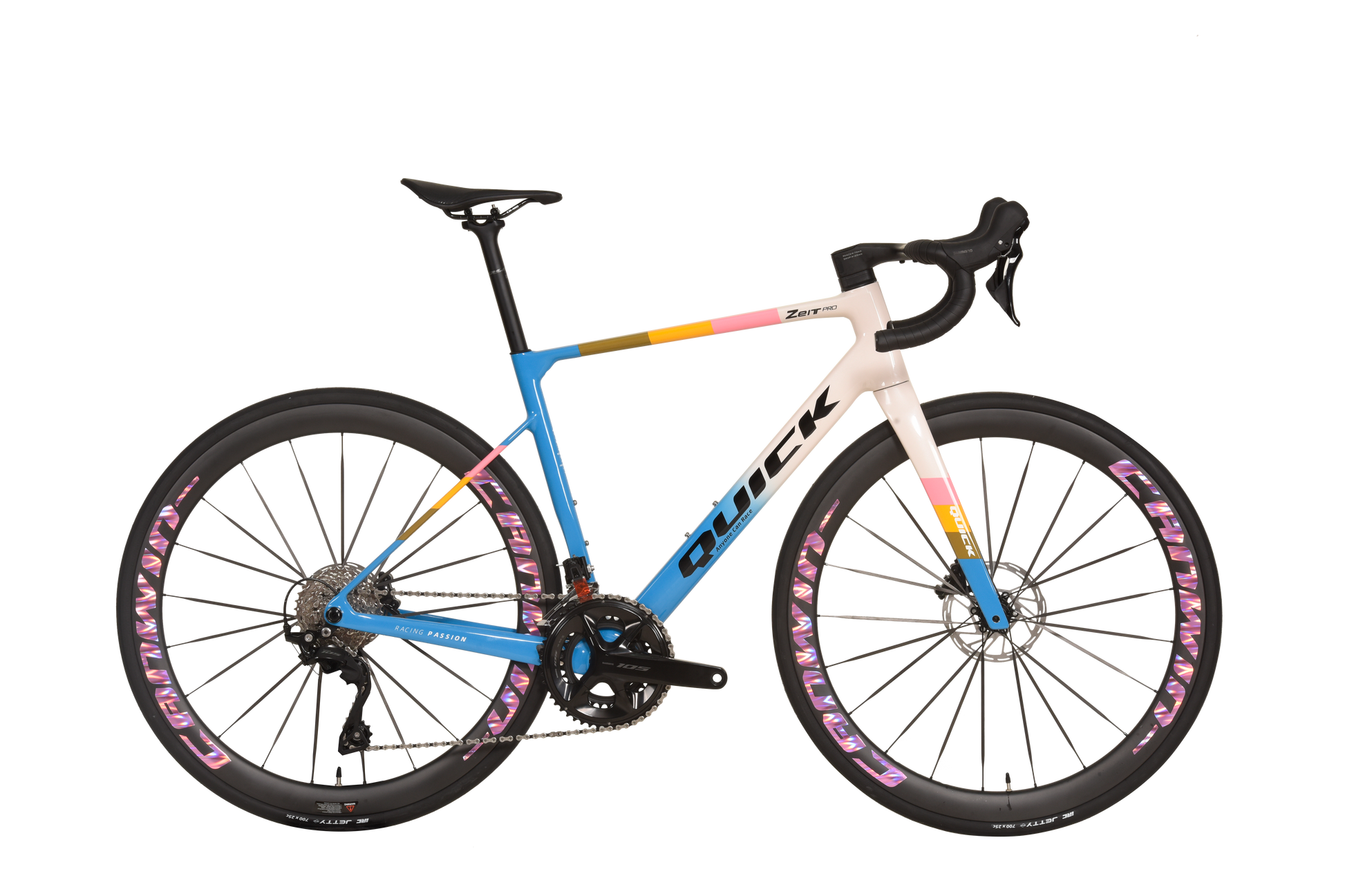

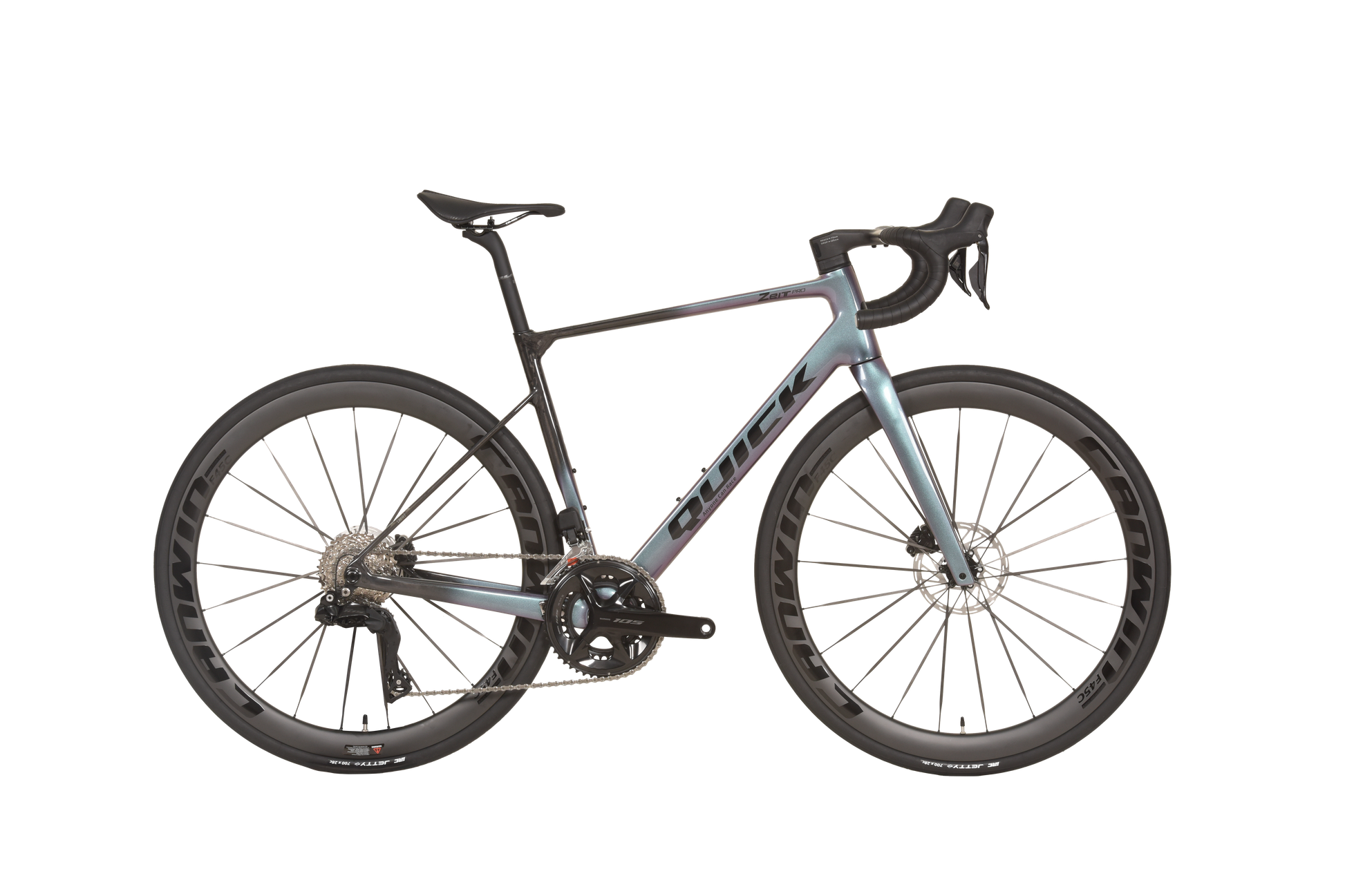

ZEIT PRO - Performance/Comfort

EPS inner mandrel technology is employed to ensure the internal carbon walls remain smooth, eliminating voids, bubbles, and the risk of delamination. Each layup pattern is extensively validated, placing the right carbon fibers in critical stress zones for maximum efficiency. By incorporating T1000 and M60 high-spec carbon fibers, the frame achieves exceptional stiffness-to-weight performance. Complemented by a geometry engineered for a wide range of riders, the result is a frameset that delivers both precision handling and race-ready efficiency.

Key Features

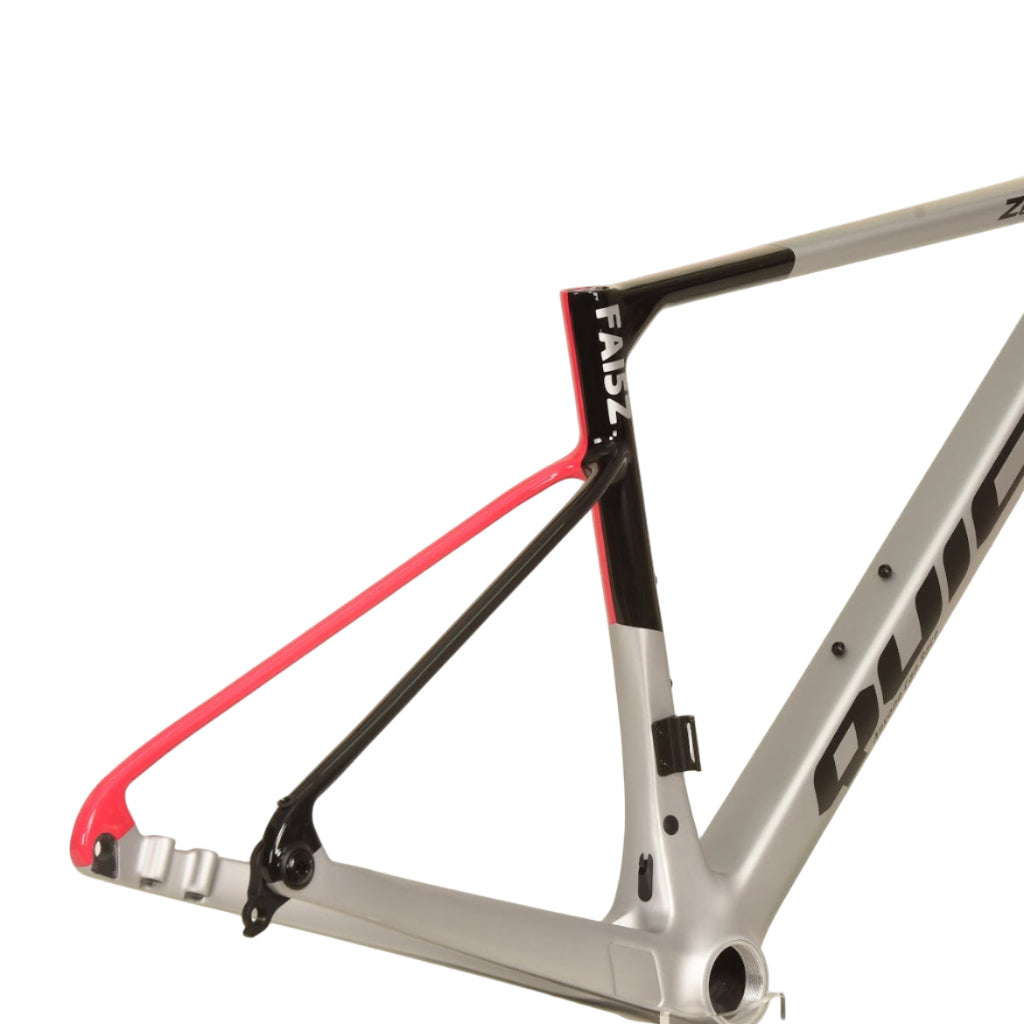

Performance Meets Comfort
Performance Meets Comfort
Engineered for riders who demand both speed and endurance

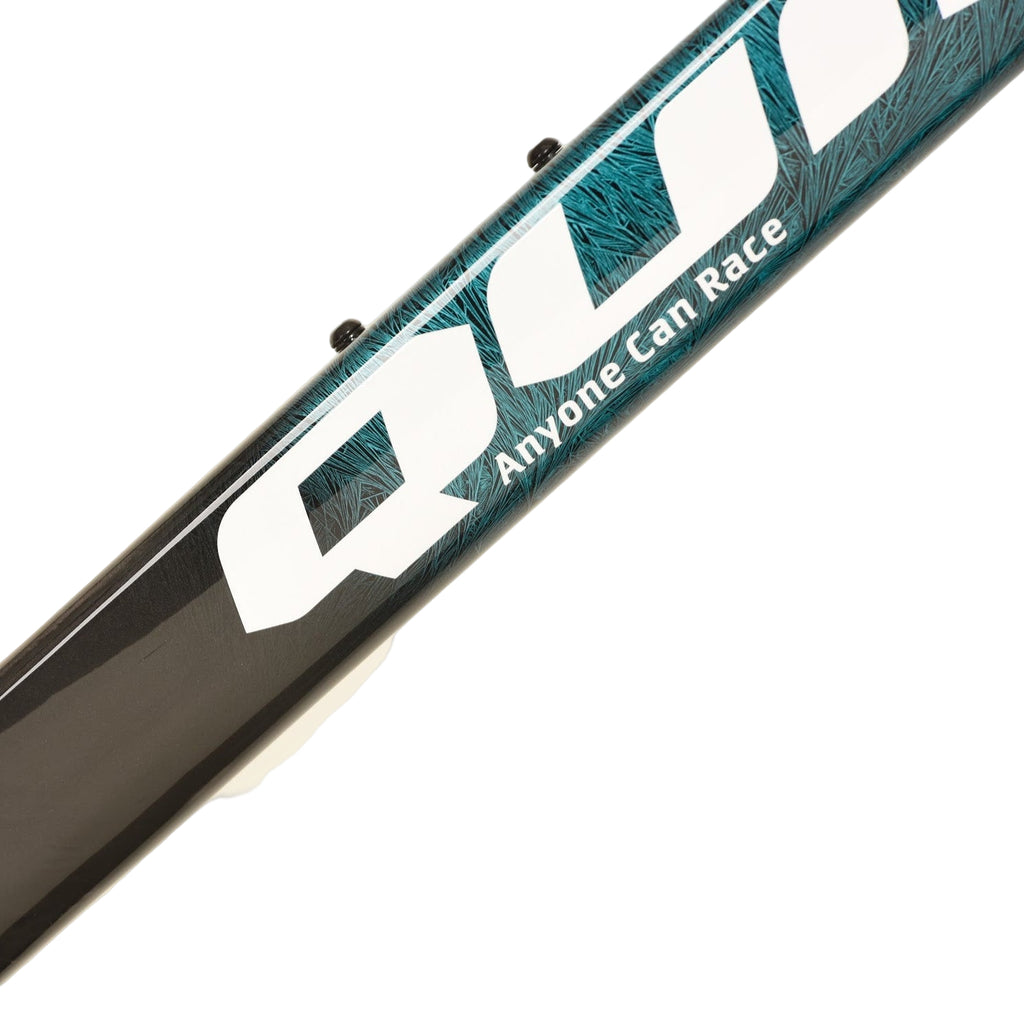

Advanced Materials
Advanced Materials
Built with Toray T1000 and M60 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.
Ultra-Light Integrated Handlebar
Ultra-Light Integrated Handlebar
Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

FRAME
Size Options
XS/430, SM/460, MD/490, LG/520, XL/550
Frame
T1000 & M60 Modulus Carbon, Monolith One PIece Construction 909g)
Fork
T1000 Optimized for climbing and descending (409g)
BRAKES
Front Brake
Shimano 105 Di2: Shimano BR-R7170
Shimano Ultegra Di2: Shimano BR-R8170
Rear Brake
Shimano 105 Di2: Shimano BR-R7170
Shimano Ultegra Di2: Shimano BR-R8170
Brake Rotors
IIIP&RO CL (160mm Front/140mm Rear)
DRIVETRAIN
Shift Levers
Shimano 105 Di2: Shimano ST-R7170
Shimano Ultegra Di2: Shimano ST-R8170
Front Derailleur
Shimano 105 Di2: Shimano FD-R7150
Shimano Ultegra Di2: Shimano FD-R8150
Rear Derailleur
Shimano 105 Di2: Shimano RD-R7150
Shimano Ultegra Di2: Shimano RD-R8150
Cassette
Shimano 105 Di2: Shimano CS-R7101-12 (11/34T)
Shimano Ultegra Di2: Shimano CS-R8101-12 (11/34T)
Chain
Shimano 105 Di2: Shimano CN-M7100
Shimano Ultegra Di2: Shimano CN-M8100
Crankset/Chainrings
Shimano 105 Di2: Shimano FC-R7100 165/170mm length options & 50/34 or 52/36 chainrings
Shimano Ultegra Di2: Shimano FC-R8100 165/170mm length options & 50/34 or 52/36 chainrings
Bottom Bracket
QuickPro/SSpade Stainless Steel T47/68mm

Size & Fit

Label Specification 430 460 490 520 550
A Size / ST Length (mm) 430 460 490 520 550
B Virtual TT (mm) 516 530 546 560 580
C ST Angle (°) 74.8° 74.3° 73.9° 73.5° 73°
D HT Angle (°) 70.8° 71.7° 72° 73° 73°
E HT Length (mm) 120 138 157 172.6 195
F RC Length (mm) 415 415 415 415 415
G Wheel Base (mm) 986.1 987.8 998.6 999.4 1012.9
H Fork Rake (mm) 45 45 45 45 45
I BB Drop (mm) 75 75 73 73 73
J Fork Length (mm) 380 380 380 380 380
K Standover (mm) 698.8 725.5 760 789 812
Reach (mm) 370.8 374.2 380.8 385 392.9
Stack (mm) 532.8 553.1 571.2 589.3 610.6
