AR:ONE FRAME

$1,999.00 USD

Custom paint is available through our Custom page or with the Customize Frame function.
Please allow 3–4 weeks for custom frame production and an additional 2–3 weeks for shipping.
Frameset includes Frame / Fork / Seatpost / Thru-Axles / Headset

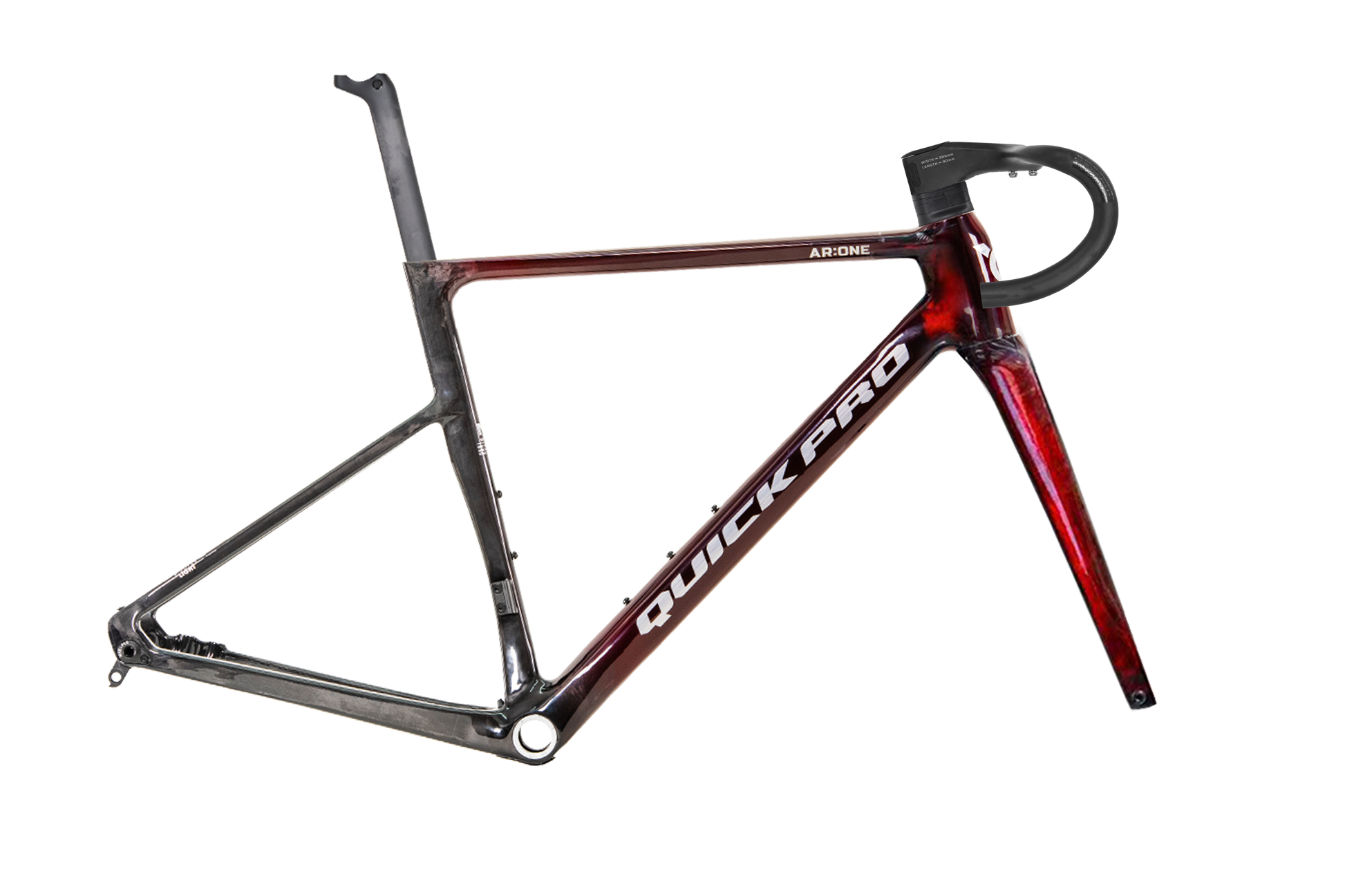

Color: Transparent Red

AR:ONE FRAME

AR:ONE - Aero/All-round

Through advanced carbon engineering and optimized layup techniques, the AR:ONE’s head tube, bottom bracket, and down tube deliver exceptional lateral and torsional stiffness—maximizing pedaling efficiency and ensuring that every watt is transferred directly to the road. Yet true frame design extends beyond pure power transfer. Alongside drivetrain efficiency, a performance road frame must account for variable road surfaces and rider comfort. To achieve this balance, our engineers have integrated nanotechnology with compliant fiber layers, increasing load capacity and impact resistance while attenuating high-frequency road vibrations. The result is a frameset that combines race-level responsiveness with all-day ride quality.

Key Features

−

Monolith Technology

By forming the main triangle and rear stays in a single mold process, the frame drastically reduces joints and bonding points, resulting in enhanced stiffness, strength, and structural integrity.

Advanced Materials

Built with premium Toray T1100 and M56 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.

Ultra-Light Integrated Handlebar

Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

−

Model

AR:ONE Frame

Material

T1100 & M65

HT

52x52 mm

BB

BSA-68mm Threaded

Thru-axle

F/100×12mm R/142×12mm

Tire (Max.)

700×32c

Weight

Frame:799g(±5%) Fork:399g(±5%) Seatpost:128(±5%)

Handlebar

CANWIN ZEPHYR SSL

Size & Fit

−

Ref	Specification	XS / 430	S / 460	M / 490	L / 520	XL / 550	XXL / 580
A	Frame Size / Seat Tube Length (mm)	430	460	490	520	550	580
B	Effective Top Tube Length (mm)	510	525	540	555	570	589
C	Seat Tube Angle (°)	75.0	74.5	74.0	73.5	73.5	73.5
D	Head Tube Angle (°)	70.0	71.0	72.0	73.0	73.0	73.5
E	Head Tube Length (mm)	105	115	130	145	160	180
F	Chainstay Length (mm)	408	408	408	408	408	408
G	Wheelbase (mm)	982	984.5	986	987	1002	1013.7
H	Fork Offset / Rake (mm)	50	50	45	45	45	45
I	Bottom Bracket Drop (mm)	71.65	71.65	71.65	71.65	71.65	71.65
J	Fork Length (mm)	370	370	370	370	370	370
K	Standover Height (mm)	710.5	736	761.5	787	812.5	837
—	Stack-to-Reach Ratio (STR)	1.34	1.35	1.38	1.41	1.41	1.42
—	Reach (mm)	375.37	382.17	386.71	391.4	402	412.3
—	Stack (mm)	503.9	516.73	534.57	552	566.6	587.7

5 stars: 10 (91%)
4 stars: 1 (9%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Great experience! I'm really happy with the bicycle. The shipping was surprisingly fast—it reached Slovakia only 9 days after being sent out. Excellent service!"

Great looking bike, very fast and responsive!

I've had a chance to ride the AR One frame for a couple months now and could not be more happy.

Loving the bike! Switched over from a Tarmac and it just rides better

Absolutely superb, great Value for money and exceptional quality. Find me on instagram under @dan.will.tri

The AR one is a special bike. I raced the bike after having it for only 3 days, it fits like a glove. The power transfer feels like a high performance track bike and it just wants to respond like it is wanting to please me. Racing this bike at the top level of my sport in Australia is such a joy. Quick Pro you have created a real magic in my riding. One ride and I guarantee you will be hooked.

Le prime sensazioni di guida sono molto buone. Mi piace molto la colorazione che ho scelto. Penso che mi divertirò molto

Love my new bike frame building it.
Great packaging and can’t wait to buy more quick pro bikes

Top.

Everything looks fine, fast shipping, good contact after sales. Quality looks good

One thing which makes it easier to build the bike:

The bearings for the headset are not marked with 45°/36° directly at the bearings, this is not fine because its not easier to figure out which one is the 45° and which one is the 36°. They are packed in bags but if you reassable the bike later (maintaince in a year or so) its dangerous to get confused about 45° or 36° /upper / lower.

It will be also fine to get a standard headsettop cover without pins or a special top cover with inlets to have the option to mount a standard stem

I love my new AR One! It pairs well with my ER One! I’m looking forward to racing this year
