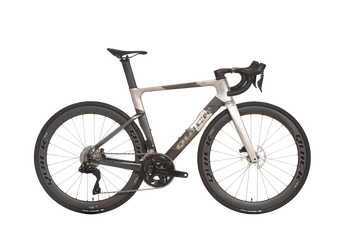

BLADE - Aero/Performance

The new BLADE introduces a next-generation aerodynamic design, refined through CFD fluid dynamics analysis to optimize tube profiles and minimize frontal drag. With a narrower wind-facing surface and enhanced integration, the frame slices through the air with greater efficiency. Constructed from premium T1000 and M60 carbon fibers and manufactured using advanced monolith one-piece molding technology, the BLADE delivers exceptional stiffness and responsiveness—instilling confidence whether accelerating at high speed or launching into a sprint.

Key Features

Key Specifications

FRAME
Size Options
XS/430, SM/460, MD/490, LG/520, XL/550, 2X/584
Frameset
T1000 & M60 Modulus Carbon, Monolith One PIece Construction 924g)
Fork
T1000 Optimized for climbing and descending (445g)
BRAKES
Front Brake
Shimano BR-R9270
Rear Brake
Shimano BR-R9270
Brake Rotors
Shimano BR-R9270
DRIVETRAIN
Shift Levers
Shimano ST-R9270
Front Derailleur
Shimano FD-R9250
Rear Derailleur
Shimano RD-R9250
Cassette
Shimano CS-R9200-12 (11/34T)
Chain
Shimano CN-M9200
Crankset/Chainrings
Shimano FC-R9200 165/170mm length options & 50/34 or 52/36 chainrings
Bottom Bracket
QuickPro/SSpade Stainless Steel T47/68mm

Size & Fit

Label Specification XS/456 S/486 M/514 L/536 XL/558 XXL/576
A Size / ST Length (mm) 456 486 514 536 558 576
B Virtual TT (mm) 505 524 542 559 575 593
C ST Angle (°) 74.3° 74° 73.5° 73.5° 73.3° 73°
D HT Angle (°) 71° 71.5° 72° 72.5° 72.8° 73°
E HT Length (mm) 101.7 117 138 157 175 192
F RC Length (mm) 410 410 410 410 410 410
G Wheel Base (mm) 963 976 985 998 1010 1022
H Fork Rake (mm) 45 45 45 45 45 45
I BB Drop (mm) 72 72 72 72 72 72
J Fork Length (mm) 375 375 375 375 375 375
K Standover (mm) 745 764 786 806 824 841
Reach (mm) 360 373 380 391 400 409
Stack (mm) 509 525 547 567 585 602
