ROAD · AERO

ER:ONE FRAME

$2,099.00 USD

Custom paint is available through our Custom page or with the Customize Frame function.
Please allow 3–4 weeks for custom frame production and an additional 2–3 weeks for shipping.
Frameset includes Frame / Fork / Seatpost / Thru-Axles / Headset

Color: Cracked Ice Blue

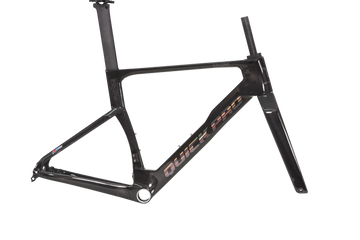

ER:ONE FRAME

ER:ONE - Aero/Racing

The ER:ONE road frame represents a step forward in structural engineering. To achieve the combined goals of low weight, high stiffness, and reduced aerodynamic drag, every stage of development demanded precision. Each carbon ply is strategically oriented, resin ratios are optimized for strength-to-weight efficiency, and tube profiles are refined through repeated simulation and testing. From layup design to functional stress analysis, every parameter is verified and re-evaluated, ensuring a frame that balances efficiency, durability, and speed under real-world racing conditions.

Key Features

−

Aerodynamic Design

The fork features a more aerodynamic design, boosting overall performance and efficiency.

Advanced Materials

Built with premium Toray T1100 and M56 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.

Precision Engineering

Every layup, tube profile, and stress point is refined through simulation and testing to ensure stiffness, durability, and race-ready efficiency.

Key Specifications

−

Model

ER:ONE Frame

Material

T1100 & M65

HT

52x52mm

BB

T47-68mm Threaded

Thru-axle

F/100×12mm R/142×12mm

Tire (Max.)

700×32c

Weight

Frame:840g(±5%) / Fork:445g(±5%) / Seatpost:139g(±5%)

Handlebar

CANWIN ZEPHYR SSL

Frame Specifications

−

FRAME

Size Options

XS/430, SM/460, MD/490, LG/520, XL/550, XXL/584

Frameset

T1100 & M65 Modulus Carbon, Monolith One Piece Construction (840g)

Fork

NARROW option for lighter weight & improved handling (-25g) or WIDE option fork for optimized aerodynamics

Size & Fit

−

Ref	Specification	XS / 430	S / 460	M / 490	L / 520	XL / 550	XXL / 584
A	Frame Size / Seat Tube Length (mm)	430	460	490	520	550	584
B	Effective Top Tube Length (mm)	515	525	540	558	575	596
C	Seat Tube Angle (°)	75.0	74.5	74.0	73.5	73.5	73.0
D	Head Tube Angle (°)	70.0	71.0	72.0	73.0	73.0	73.5
E	Head Tube Length (mm)	105	118	132	148	165	185
F	Chainstay Length (mm)	408	408	408	408	408	408
G	Wheelbase (mm)	985	985	987	991	1008	1019
H	Fork Offset / Rake (mm)	45	45	45	45	45	45
I	Bottom Bracket Drop (mm)	70	70	70	70	70	70
J	Fork Length (mm)	373	373	373	373	373	373
K	Standover Height (mm)	746	762	779	797	813	846
—	Stack-to-Reach Ratio (STR)	1.32	1.36	1.39	1.40	1.40	1.42
—	Reach (mm)	380	381	386	393	406	415
—	Stack (mm)	505	521	538	556	572	593

5 stars: 80 (92%)
4 stars: 7 (8%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Very nice frame, quickly arrived and very smooth. I loved it !

Excellent unique to me by working with their custom paint team. This bike is as good if not better than my previous SL7. It is stiff stable and hols hish speed amazing

The best value framesets. Amazing finish. Amazing value.

Bike is stunning and rides well. Build quality seems good. Packaging could have been better.

Excellent frame, the build was easy. I enjoy the quality of all the parts, even the small parts from the headset are good quality. On the road the bike feeling good, stiffer than my Scott foil!

The frame is spectacular; I really like it. It’s very responsive on climbs and exciting to ride.

Frame arrived. Custom paint looks fantastic. Can’t wait to build it up and ride it!

excelente

I have purchased 2 ER ONE frames, one raw carbon and one custom pearl white. Both have been fantastic quality and a pleasure to build.

Super aero! Fast!

Amazing value for money as well as super straight forward purchase, delivery, build process and great ride experience.

Took almost 2.5 weeks to be delivered to Germany with zero issues in tracking, customs, packing & the build process was also very smooth; no issues with the hardware delivered, everything with correctly labeled and torqued it took 2 hours to build the whole thing.

Bike rides like a dream, coming from an AEROAD CFR, the ER one is definitely faster on the flat and holds 40+KPH speeds way better than any other bike I have owned.
what I was surprised by is how well power transfer feels, especially on climbs, I was expecting this bike to suffer in 8+ % grades but it handles it self too well.

all in all, very happy with the decision to move to Quick Pro and would strongly recommend

This one is easy. I have had many frames over the years. SWorks level of bikes. This may be the best frame I have ever owned.

Overall, amazing experience and of course value for money,

Purchase Experience :
everything went super smooth, I had some question and the support team on chat answered them all.
I went with the basic black color with the integrated bar and bottom bracket, got shipping number from China 2 days later, and everything arrived (Munich, Germany) 2 weeks after that. So all In all, 2.5 weeks for delivery with zero issues on shipping/customes.

Build:
All required parts were there and properly labeled as well as torque specs, no issues whatsoever with the cable routing, groupset installation, handlebar, etc; everything needed was in the box and very well packaged.

First Ride and impressions:
This bike is one of the fastest bikes I ever ridden, comparing to an AEROAD CFR, I can say it is quite faster, especially at 40KPH+ speeds, this bike really shines.
Very good on climbs as well and is very well cross wind stability and corners and handles super good.
It feels very sluggish on 30KPH-Ish and below speed, so it is a bike made for faster speeds.

Overall, amazing experience and I don't think it can get better than this for the price value and overall support and process.

Love it

Great frame. Actual weight for size L, raw carbon finish is 967g for the frame and 467g for the wide fork. The handlebar has a light cracking sound but it might be due to my construction.

Some smaller bits (like dust cover for the brake hose and brake hose foam covers for sound proofing) missing but otherwise high quality titanium bolts etc.

I'm really happy with this frame set. It's light, feels very fast and the finishing is great. Took about 5 weeks to arrive in Canada including custom paint and taxes were covered.

Rigida e ottima guidabilita

Super nice frameset

The bike market should be shaking .. Quick Pro quality is just at the level or even more than the western brands for an amazing price. The paint and the aero shape is just beautiful. I just bought another frame “ blade “ for my wife. Get it . 100% recommended

I'm 5 foot 10 went with a size medium similar to my allez size 54. The frame is definitely lighter. By a couple pounds and more responsive. great bike.

It’s the real deal for a 1/3 of the price - I feel like the smartest person on the road

Stiff, fast and beautiful!

Très content de mon achat! Délai un peu long, car plusieurs pièces du groupe pas dispo, du coup pas la configuration souhaitée mais sinon très bien. L’ensemble cadre/fourche à l’air très qualitatif, montage facile! La peinture personnalisée est très bien!
Je recommande!
Délais entre commande et livraison 8 semaines
