Name: ER:ONE RED AXS 2x12
Brand: QUICK PRO US
Price: 6599.0 USD
Availability: InStock

ER:ONE RED AXS 2x12

The ER:ONE road frame represents a step forward in structural engineering. To achieve the combined goals of low weight, high stiffness, and reduced aerodynamic drag, every stage of development demanded precision. Each carbon ply is strategically oriented, resin ratios are optimized for strength-to-weight efficiency, and tube profiles are refined through repeated simulation and testing. From layup design to functional stress analysis, every parameter is verified and re-evaluated, ensuring a frame that balances efficiency, durability, and speed under real-world racing conditions.

Key Features

−

Aerodynamic Design

The fork features a more aerodynamic design, boosting overall performance and efficiency.

Advanced Materials

Built with premium Toray T1100 and M56 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.

Ultra-Light Integrated Handlebar

Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

−

Model

ER:ONE

Material

T1100 & M65

HT

52x52mm

BB

T47-68mm Threaded

Thru-axle

F/100×12mm R/142×12mm

Tire (Max.)

700×32c

Brakes

Flat Mount Disc Brake

Weight

Frame:840g(±5%) Fork:445g(±5%) Seatpost:139g(±5%)

Wheels

RORE Steel Spoke, Aero 50, Aero 60, Lighter 50 or Lighter 60

Inner Tube

700x28c

Saddle

SAMASSI 3D Print Saddle

Handlebar

CANWIN ZEPHYR SSL

Key Specifications

−

FRAME

Size Options

XS/430, SM/460, MD/490, LG/520, XL/550, XXL/584

Frameset

T1100 & M65 Modulus Carbon, Monolith One Piece Construction (840g)

Fork

NARROW option for lighter weight &improved handling (-25g) or WIDE option fork for optimized aerodynamics

BRAKES

Front Brake

SRAM Red AXS

Rear Brake

SRAM Red AXS

Brake Rotors

SRAM Paceline X CL A1 (160mm Front/140mm Rear)

DRIVETRAIN

Shift Levers

SRAM Red AXS E1

Front Derailleur

SRAM Red AXS E1

Rear Derailleur

SRAM Red AXS E1

Cassette

SRAM Red XDR 10/36T

Chain

SRAM Red AXS E1

Crankset/Chainrings

SRAM Red AXS E1 170mm length options & 50/37 chainrings

Bottom Bracket

QuickPro/SSpade Stainless Steel T47/68mm

Size & Fit

−

Ref	Specification	XS / 430	S / 460	M / 490	L / 520	XL / 550	XXL / 584
A	Frame Size / Seat Tube Length (mm)	430	460	490	520	550	584
B	Effective Top Tube Length (mm)	515	525	540	558	575	596
C	Seat Tube Angle (°)	75.0	74.5	74.0	73.5	73.5	73.0
D	Head Tube Angle (°)	70.0	71.0	72.0	73.0	73.0	73.5
E	Head Tube Length (mm)	105	118	132	148	165	185
F	Chainstay Length (mm)	408	408	408	408	408	408
G	Wheelbase (mm)	985	985	987	991	1008	1019
H	Fork Offset / Rake (mm)	45	45	45	45	45	45
I	Bottom Bracket Drop (mm)	70	70	70	70	70	70
J	Fork Length (mm)	373	373	373	373	373	373
K	Standover Height (mm)	746	762	779	797	813	846
—	Stack-to-Reach Ratio (STR)	1.32	1.36	1.39	1.40	1.40	1.42
—	Reach (mm)	380	381	386	393	406	415
—	Stack (mm)	505	521	538	556	572	593

Geometry

5 stars: 3 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

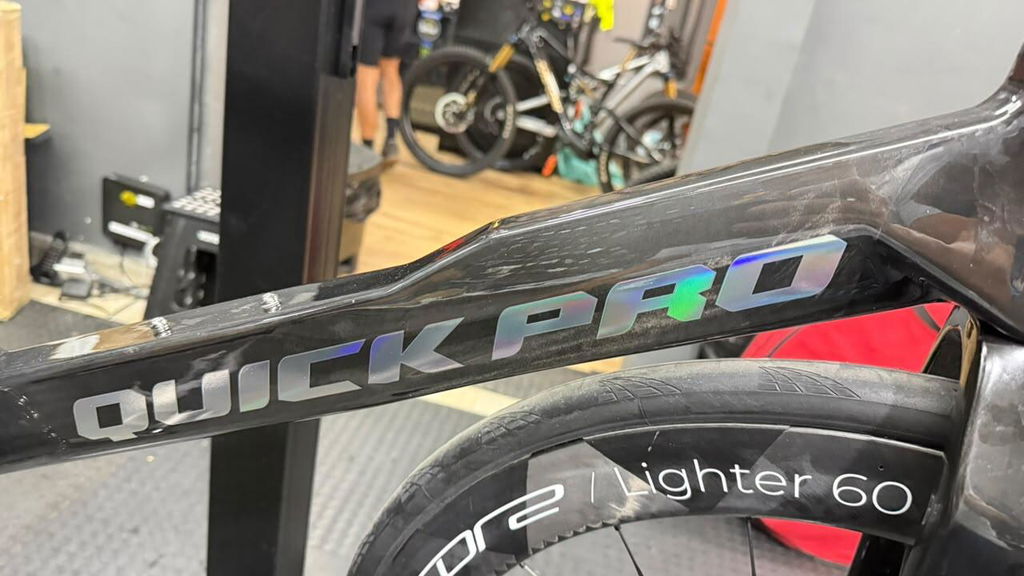

The ER has genuinely exceeded my expectations. The bike feels incredibly fast, stiff, and responsive, while still being comfortable enough for longer rides.

The frame feels very efficient under power, especially during acceleration and higher-speed efforts. Handling is precise and confidence-inspiring, and the aerodynamic design gives the bike a very modern, aggressive, and premium appearance.

The overall build quality and finish are impressive, and the integration of the components gives the ER the look and feel of a much more expensive superbike.

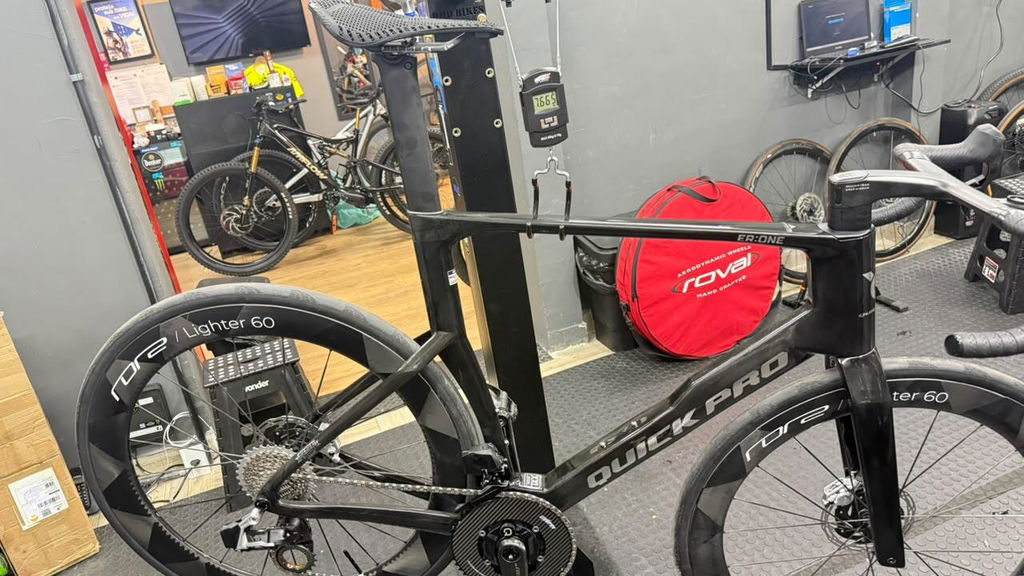

Paired with the RORE Lighter 60 Carbon Spoke wheels, the bike feels extremely quick and responsive. It is an impressive combination of aerodynamics, low weight, stiffness, and design.

Overall, I’m extremely satisfied with the ER. It offers outstanding performance and excellent value for money. I would definitely recommend it to anyone looking for a high-performance aero road bike.

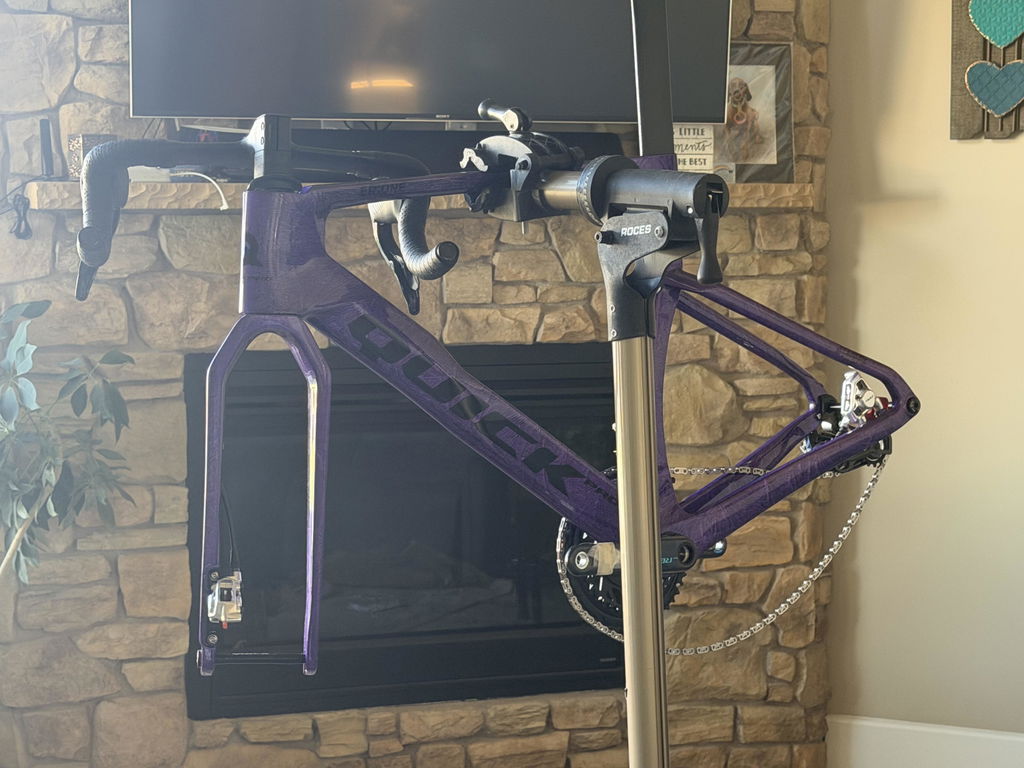

Purchased for my son! Beautiful and well made. He loves it. Easy to put together.

the bike is amazing
