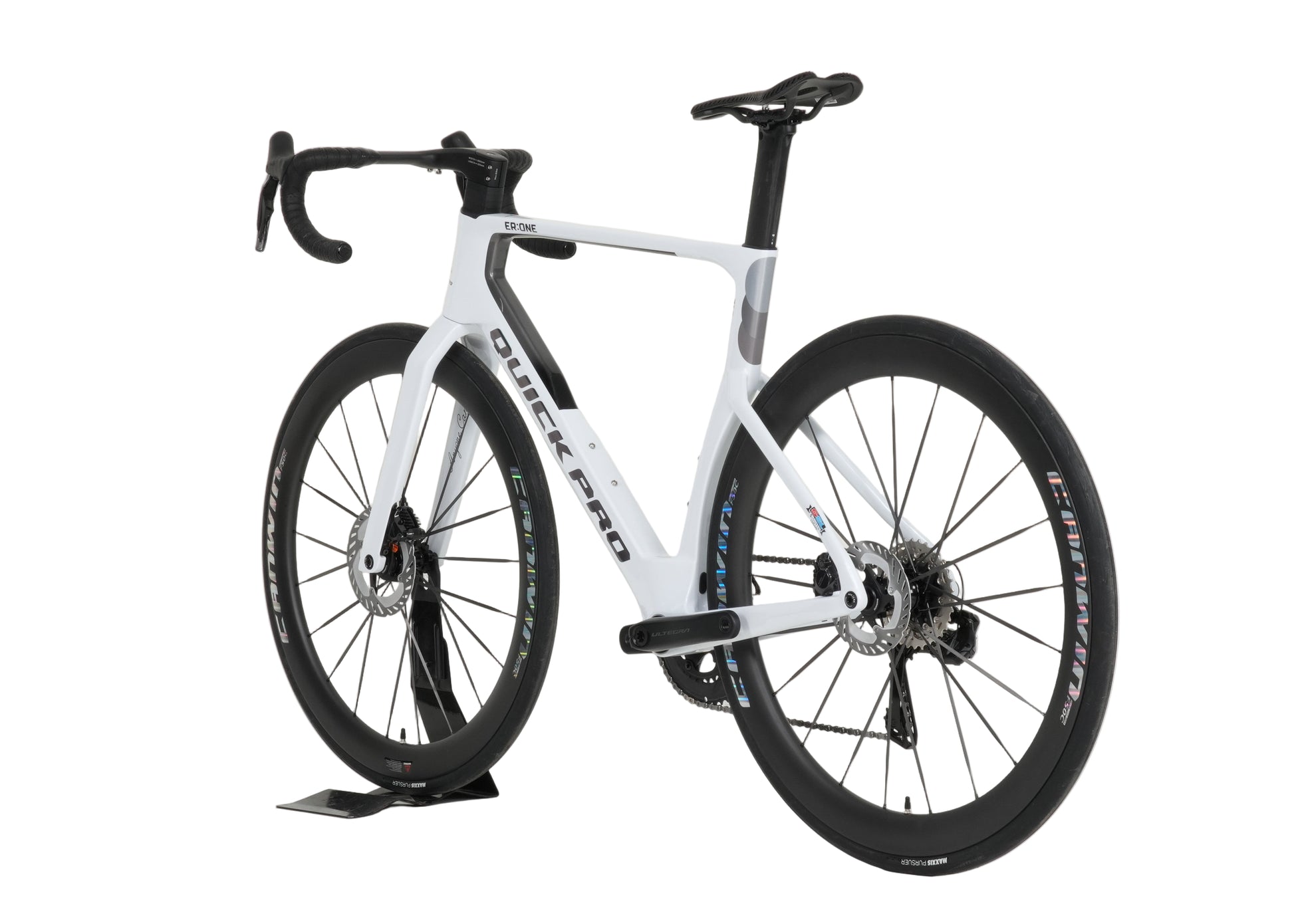

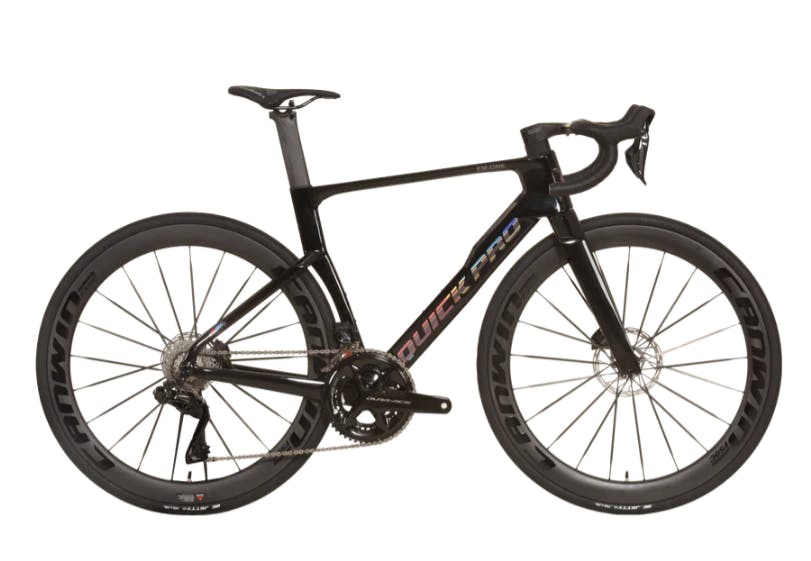

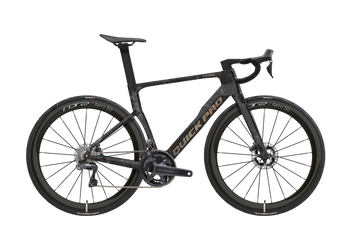

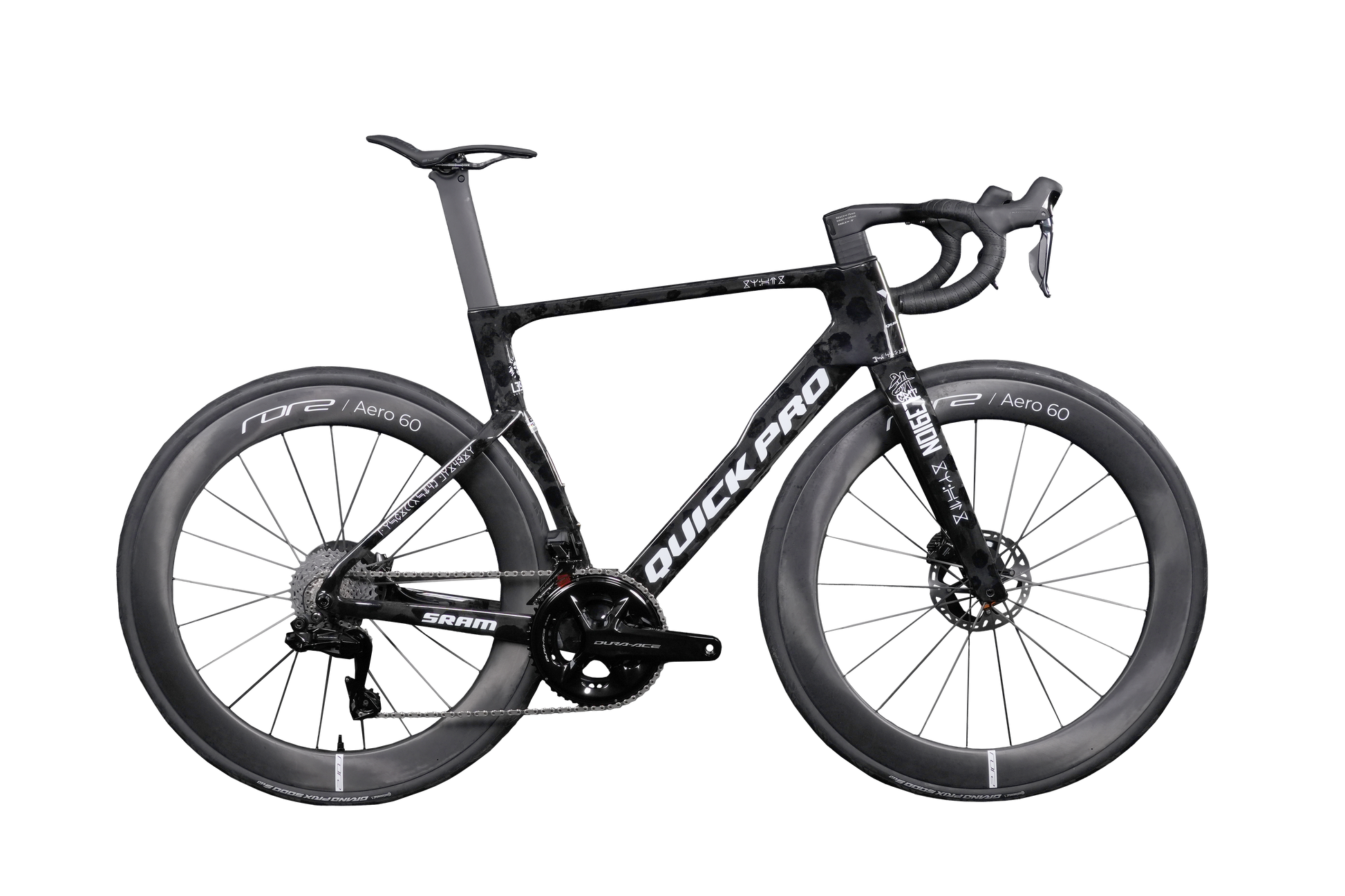

ER:ONE ULTEGRA Di2

$4,699.00 USD

UCI approved race bike
The Official Bike of Quick Continental Team
Shimano Ultegra R8170 Di2 12-Speed Groupset
Complete build carbon spokes: 7.1kg ±5%

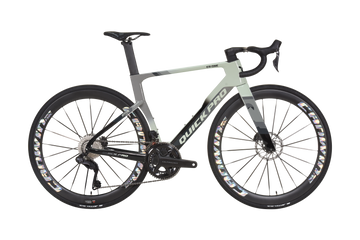

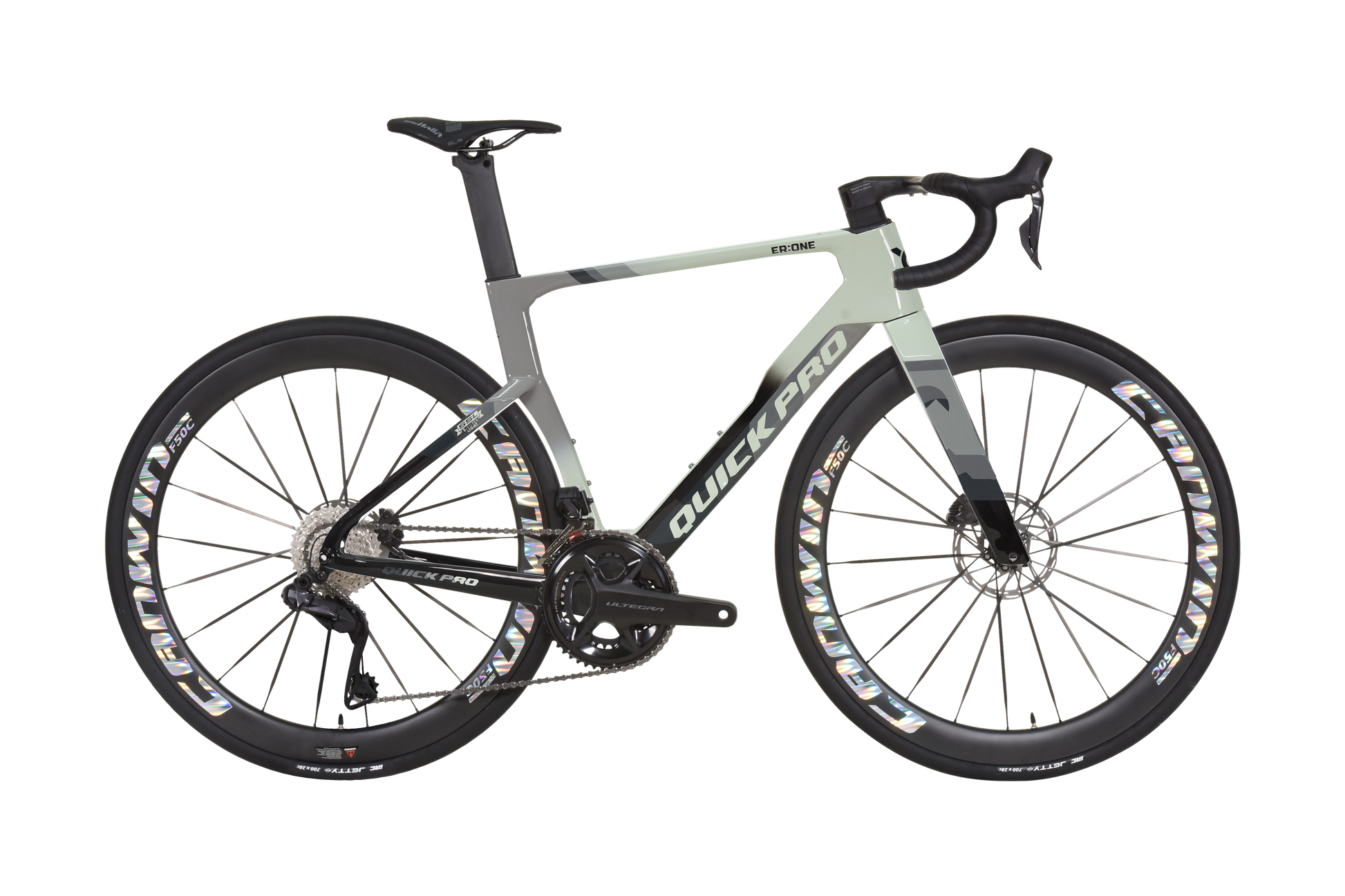

Color: Army Green

Army Green

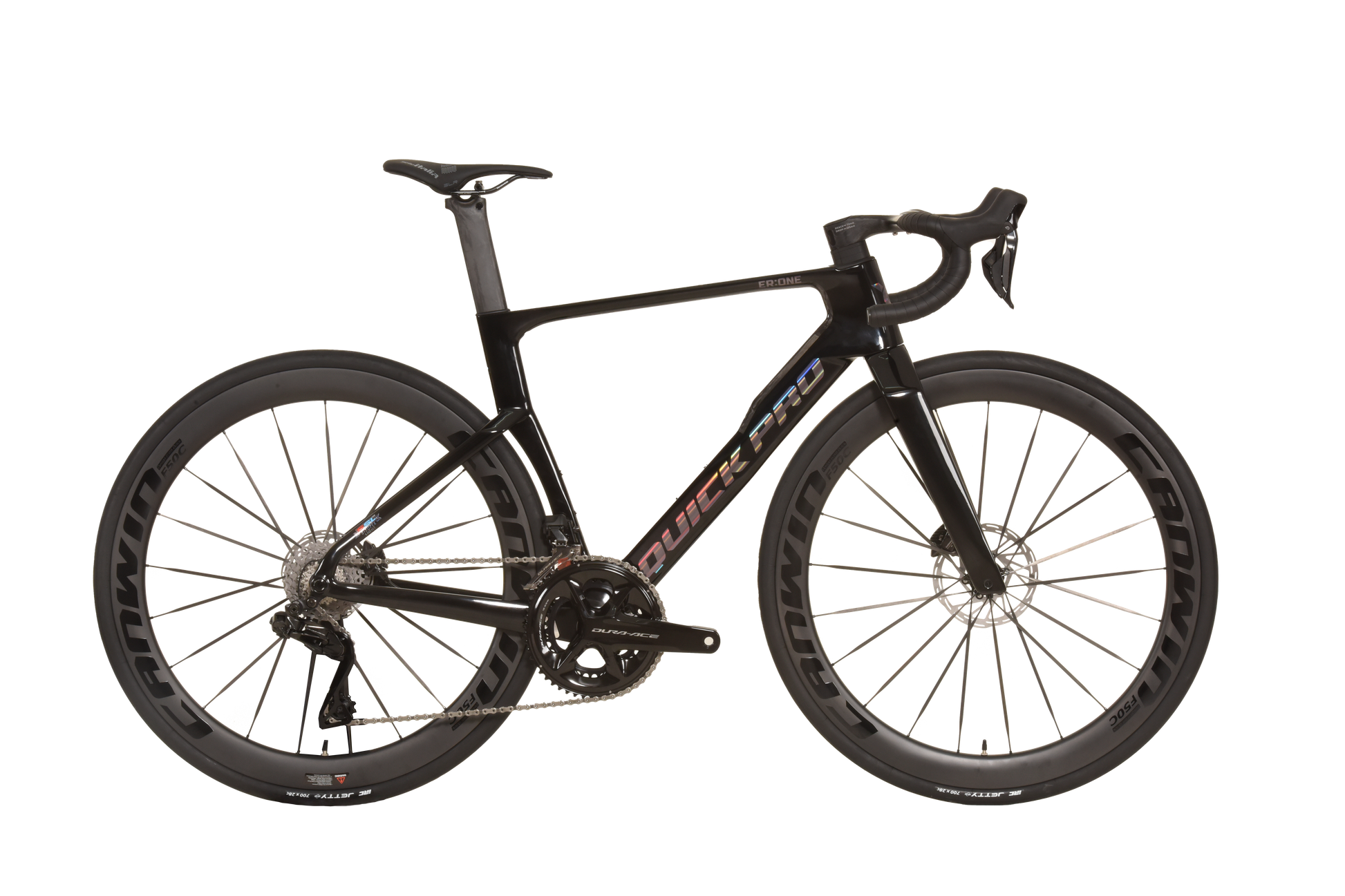

Night Dark

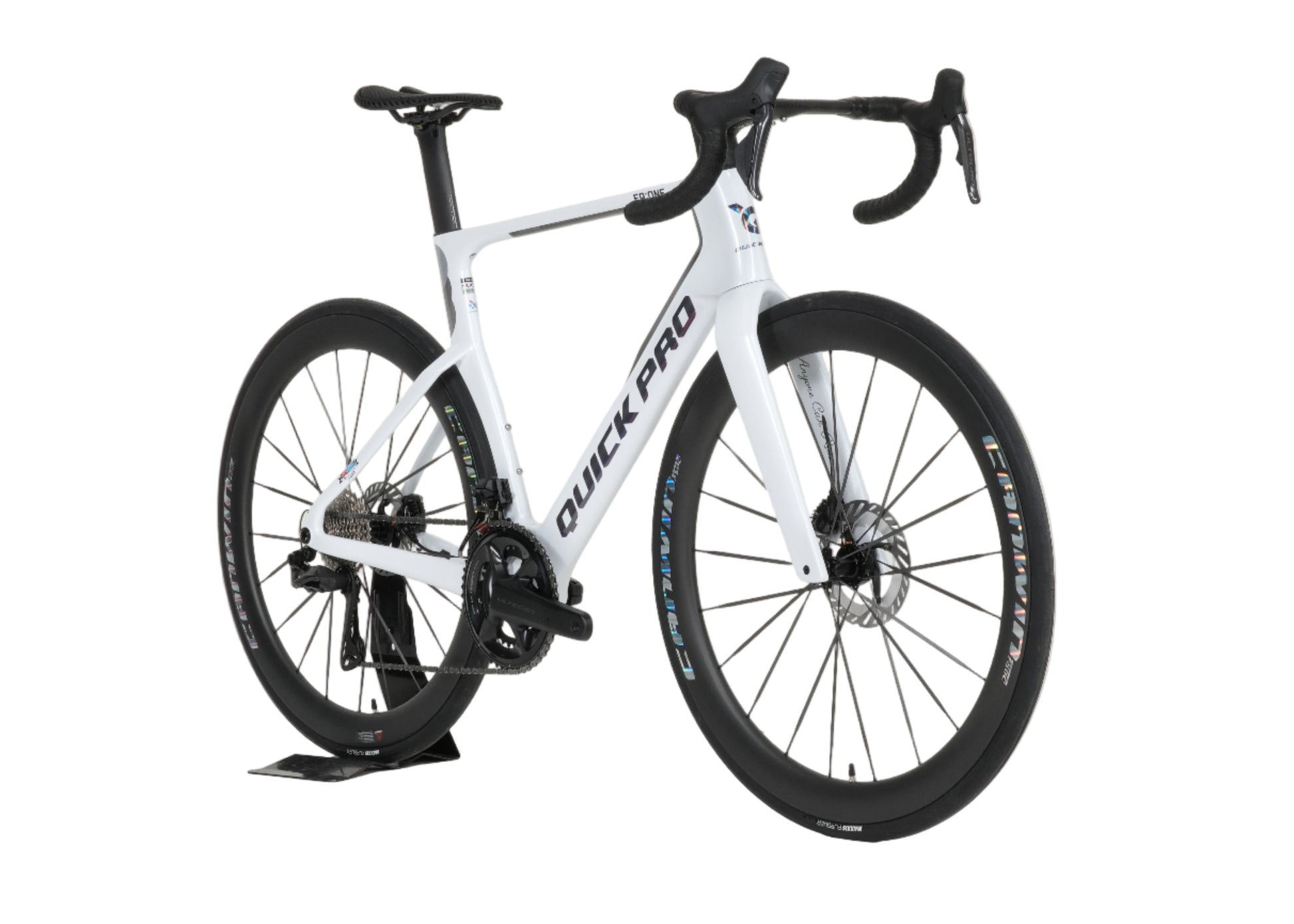

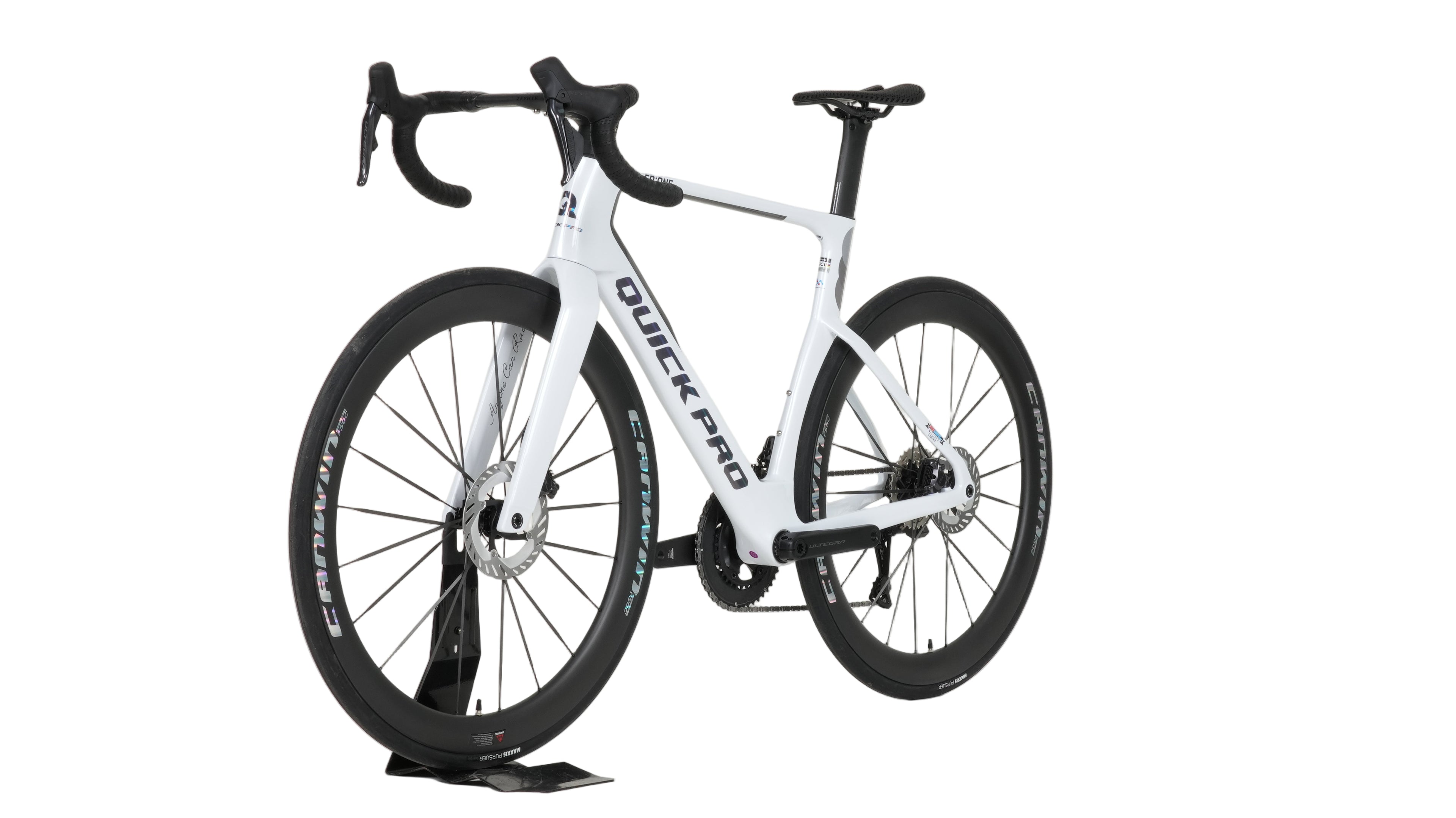

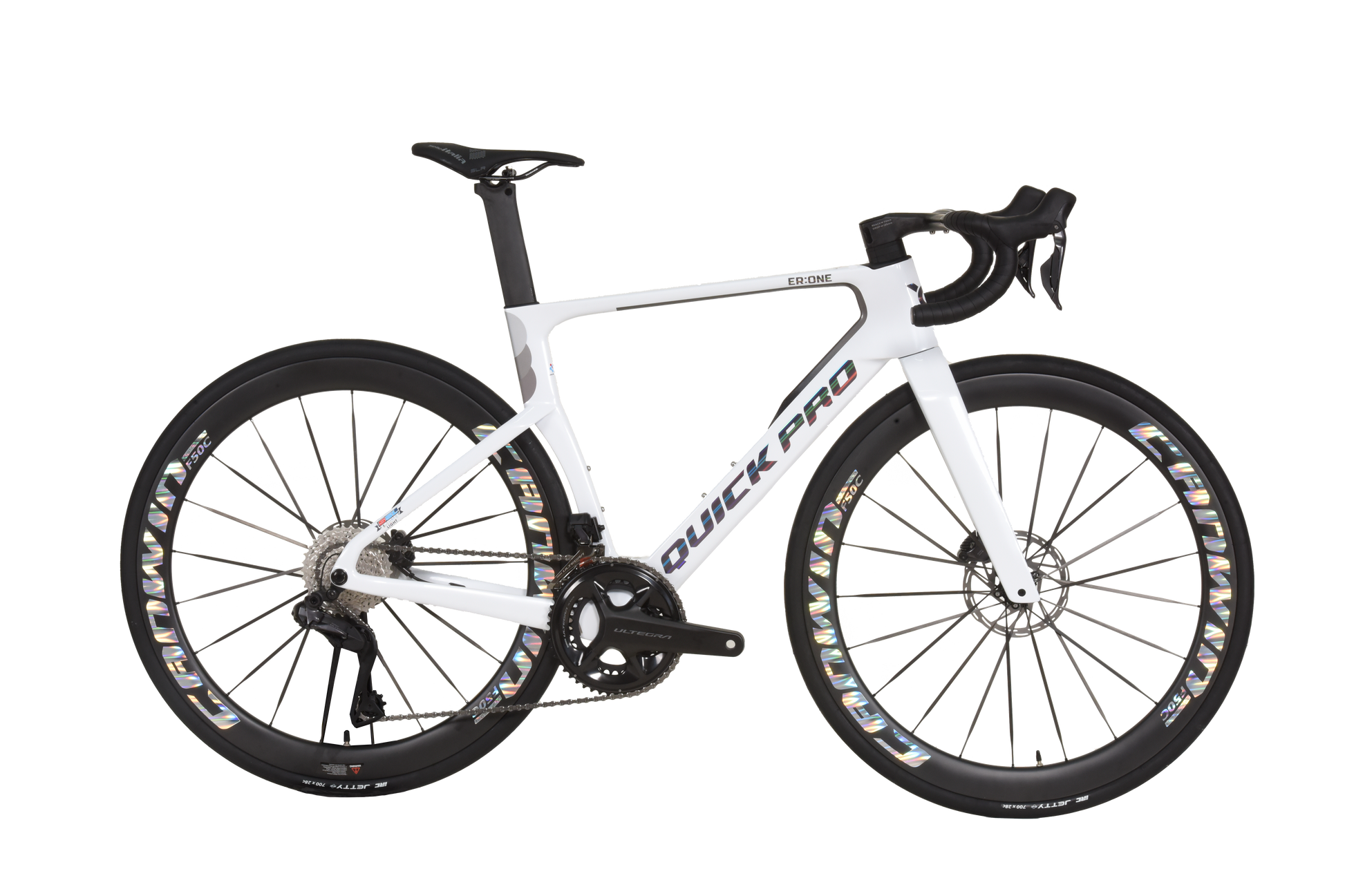

Starlight White

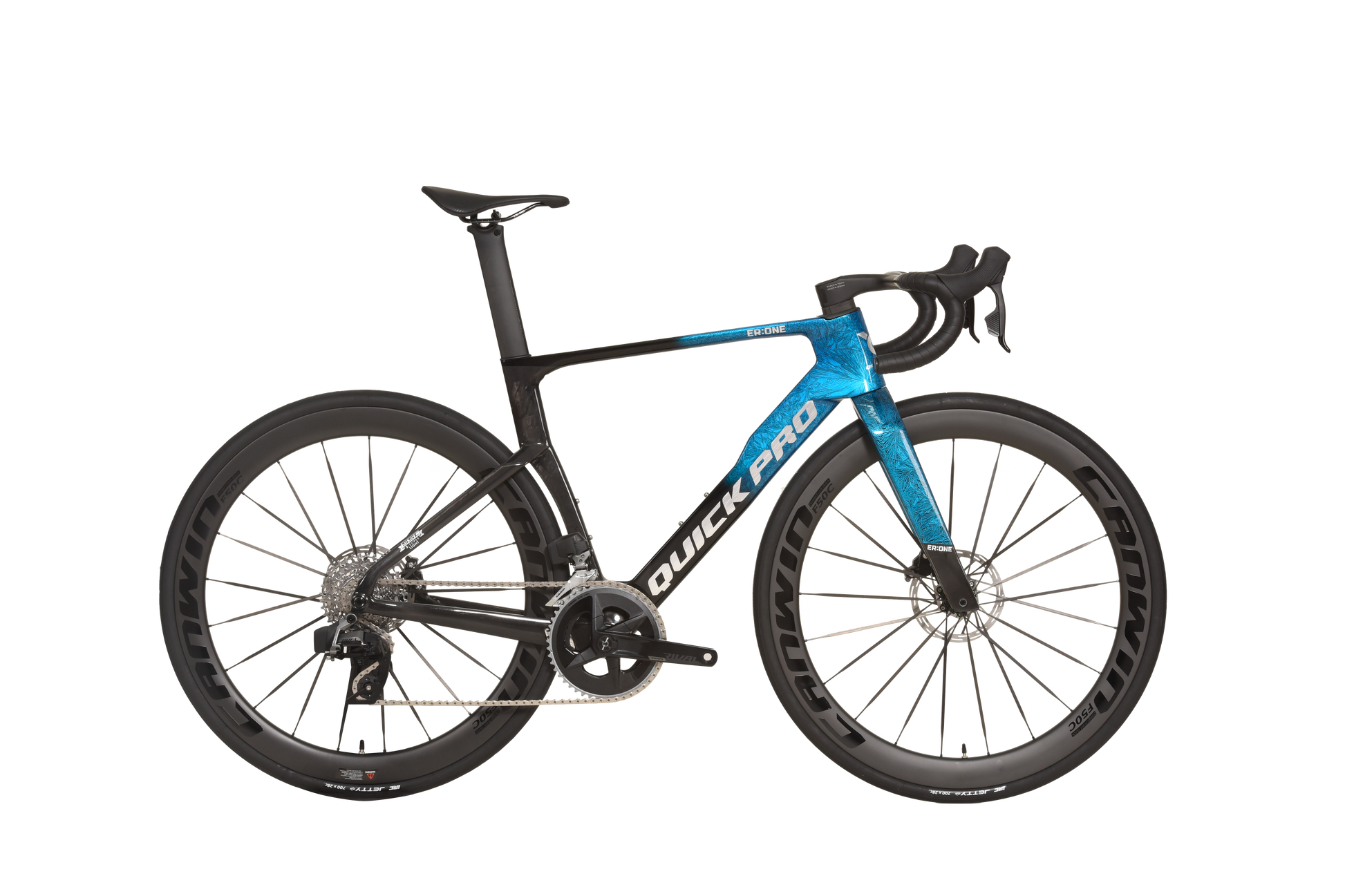

Cracked Ice Blue

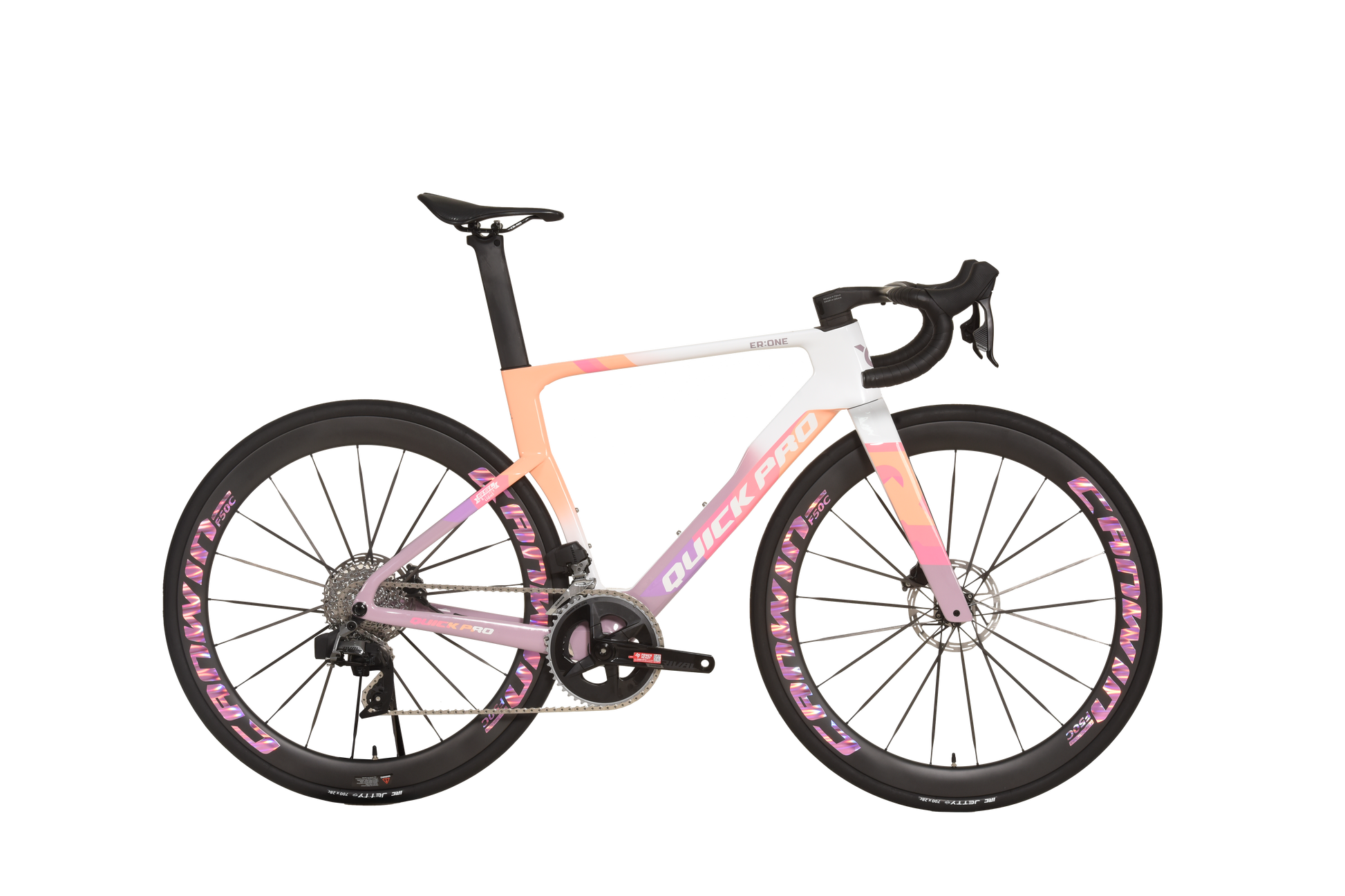

Phantom Violet Pink

Quantity

Estimated Delivery:Feb 01 - Feb 05

ER:ONE ULTEGRA Di2

ER:ONE - Aero/Racing

The ER:ONE road frame represents a step forward in structural engineering. To achieve the combined goals of low weight, high stiffness, and reduced aerodynamic drag, every stage of development demanded precision. Each carbon ply is strategically oriented, resin ratios are optimized for strength-to-weight efficiency, and tube profiles are refined through repeated simulation and testing. From layup design to functional stress analysis, every parameter is verified and re-evaluated, ensuring a frame that balances efficiency, durability, and speed under real-world racing conditions.

Key Features

−

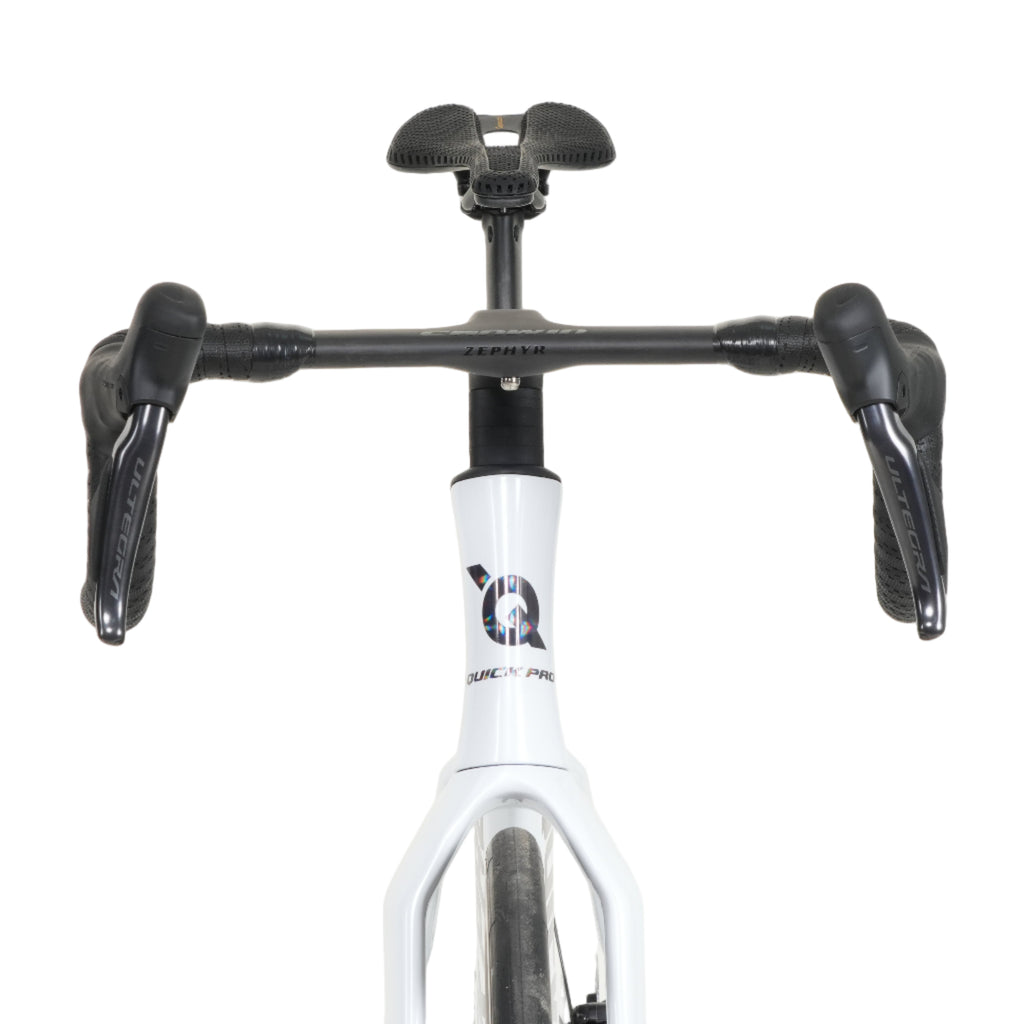

Aerodynamic Design

The fork features a more aerodynamic design, boosting overall performance and efficiency.

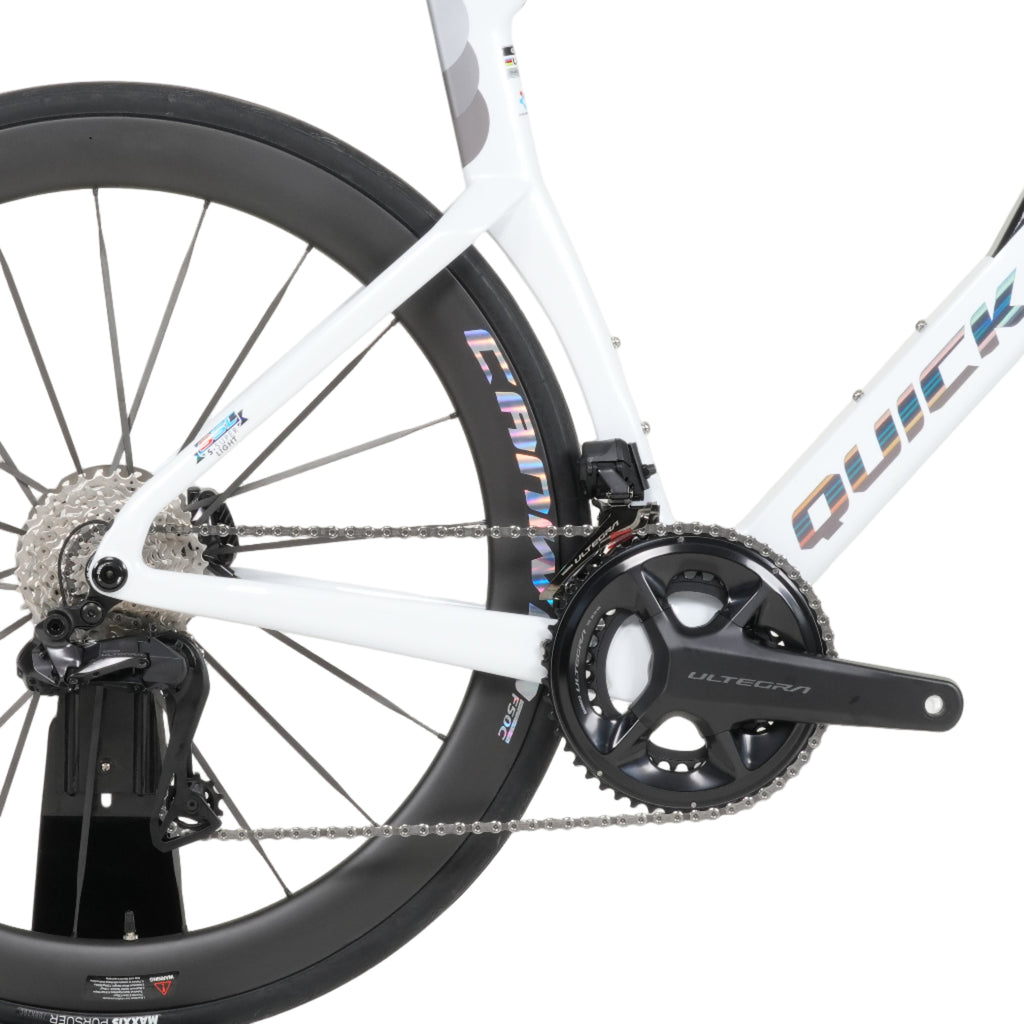

Advanced Materials

Built with premium Toray T1100 and M56 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.

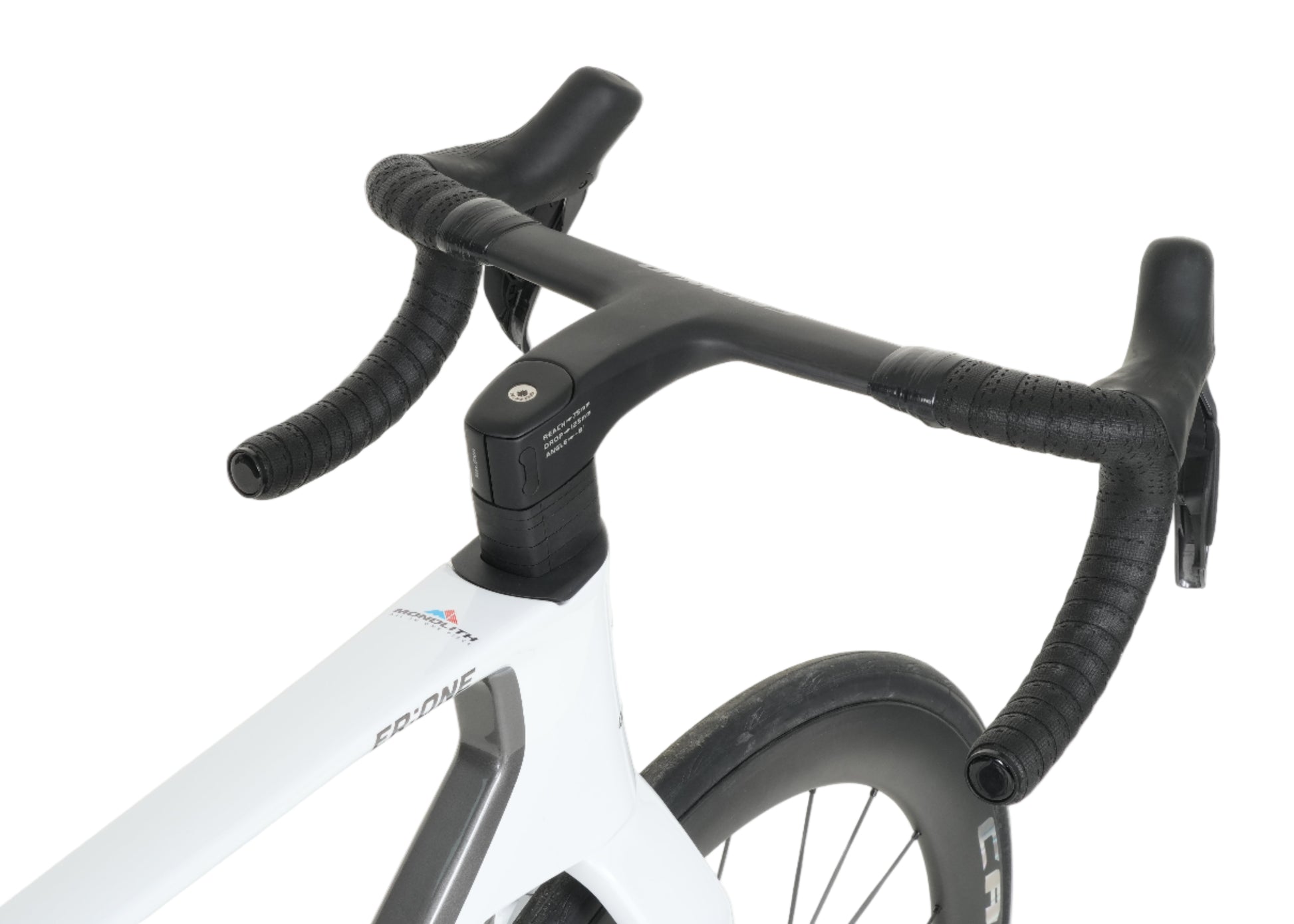

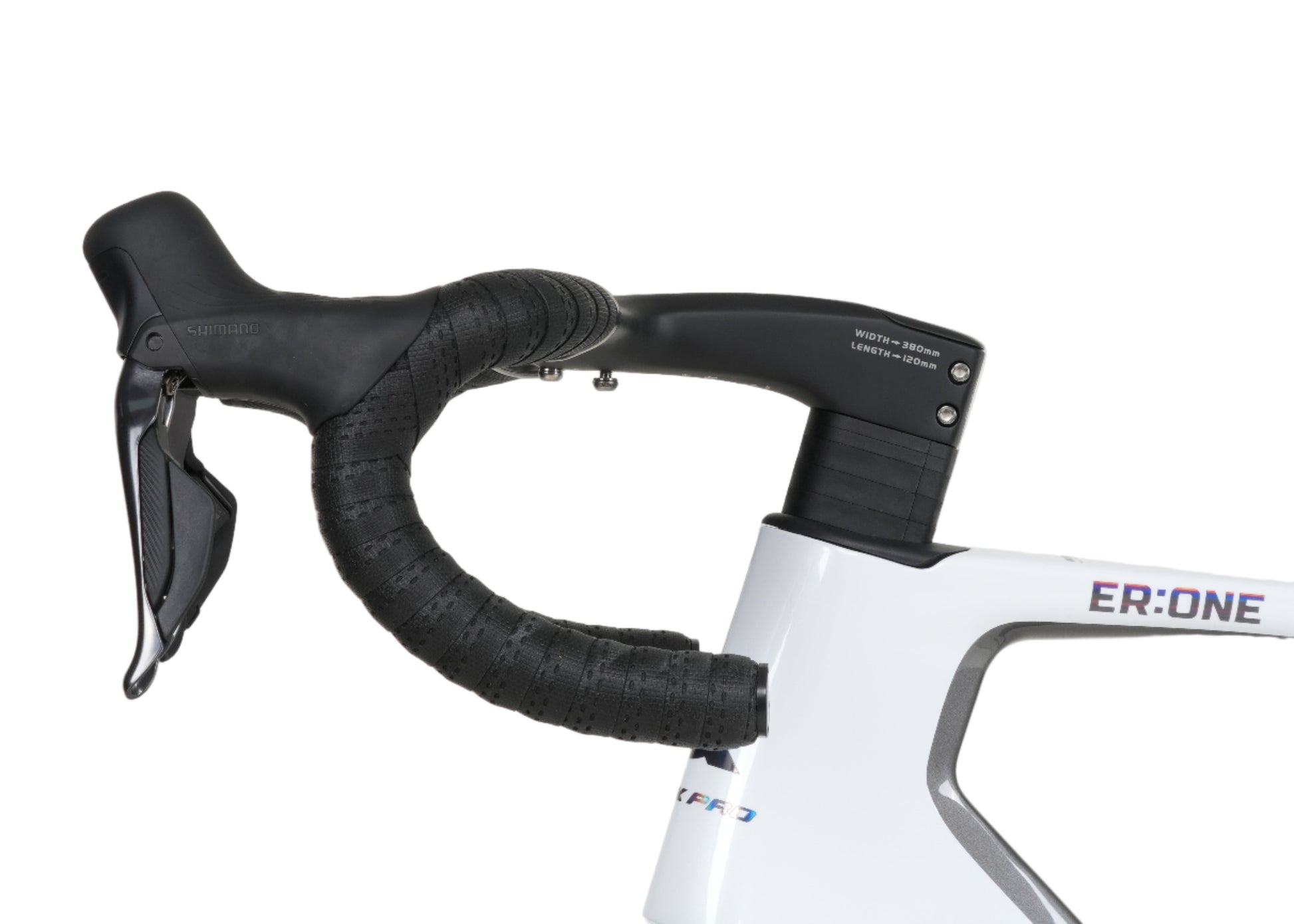

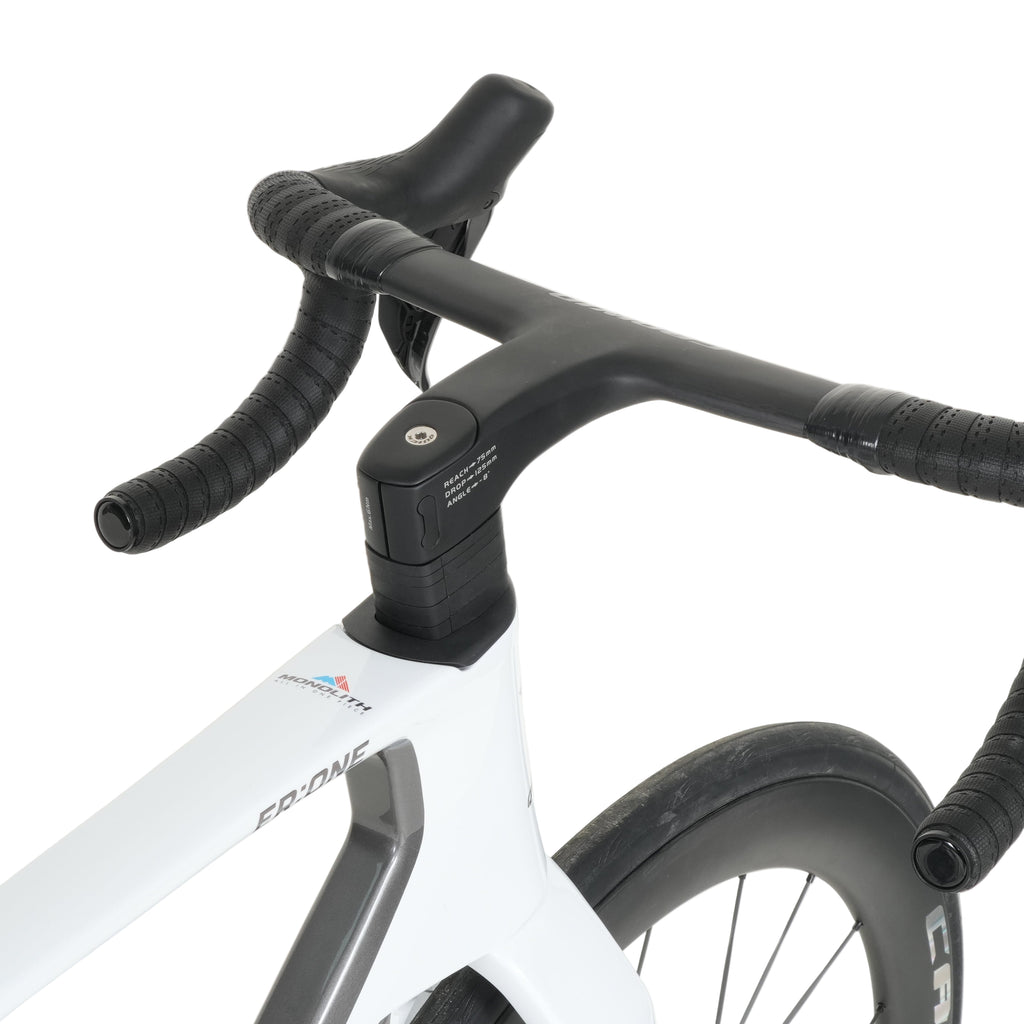

Ultra-Light Integrated Handlebar

Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

−

Model

ER:ONE

Material

T1100 & M65

Headset

52 x 52 mm

BB

T47-68

Thru-axle

F/ 100×12mm R/ 142×12mm

Tire (Max.)

700×32c

Brakes

Flat-mount

Weight

Frame/840g±5% Fork/445g±5%

Wheels

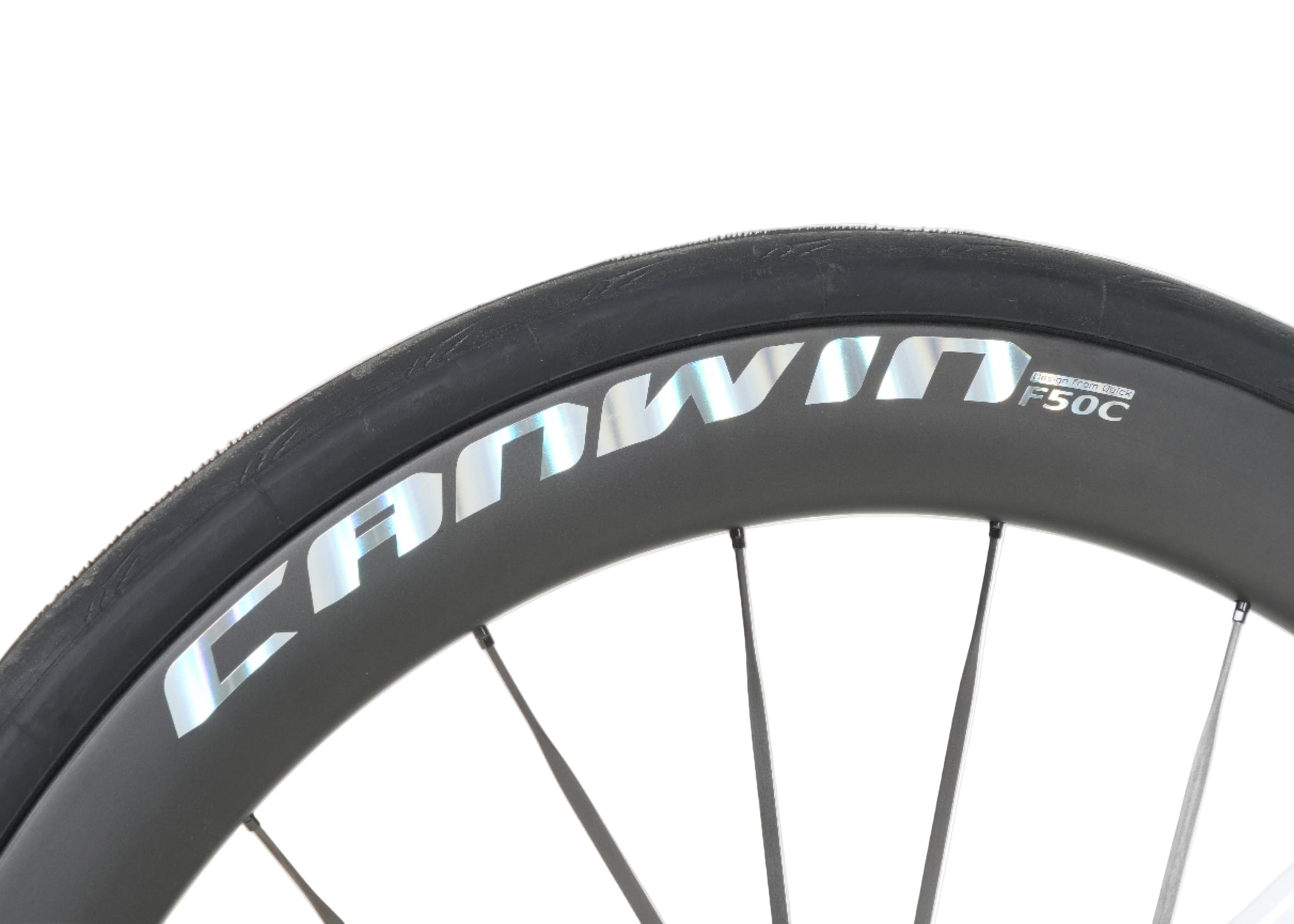

CANWIN RC50 or F50C

Inner Tube

700 x 28c

Saddle

SAMASSI 3D Print Saddle

Handlebar

CANWIN ZEPHYR SSL

Size & Fit

−

Ref	Specification	XS / 430	S / 460	M / 490	L / 520	XL / 550	XXL / 584
A	Frame Size / Seat Tube Length (mm)	430	460	490	520	550	584
B	Effective Top Tube Length (mm)	515	525	540	558	575	596
C	Seat Tube Angle (°)	75.0	74.5	74.0	73.5	73.5	73.0
D	Head Tube Angle (°)	70.0	71.0	72.0	73.0	73.0	73.5
E	Head Tube Length (mm)	105	118	132	148	165	185
F	Chainstay Length (mm)	408	408	408	408	408	408
G	Wheelbase (mm)	985	985	987	991	1008	1019
H	Fork Offset / Rake (mm)	45	45	45	45	45	45
I	Bottom Bracket Drop (mm)	70	70	70	70	70	70
J	Fork Length (mm)	373	373	373	373	373	373
K	Standover Height (mm)	746	762	779	797	813	846
—	Stack-to-Reach Ratio (STR)	1.32	1.36	1.39	1.40	1.40	1.42
—	Reach (mm)	380	381	386	393	406	415
—	Stack (mm)	505	521	538	556	572	593

Shimano Ultegra R8170 Di2 — 12-Speed Electronic Groupset

Drivetrain Components

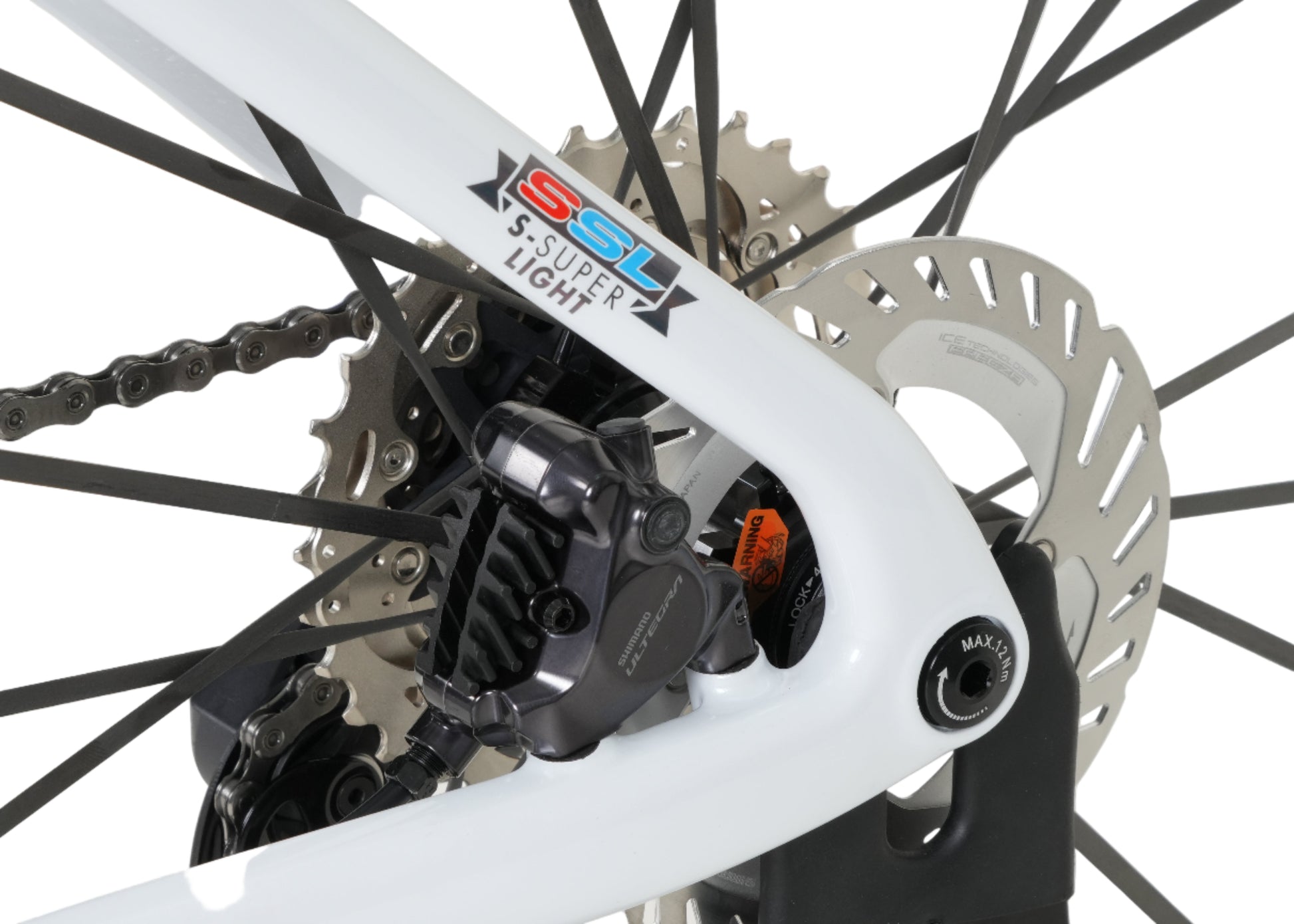

Braking System

Included in Full Groupset Package
